ABB orion1-4-30-165-b
MPN: 2TLA022302R1000
Alt. SKU: Orion1-4-30-165-B
Special Price
£2,080.84
£1,734.03
Regular Price
£2,448.04
Why Choose the Orion1-4-30-165-B [2TLA022302R1000]

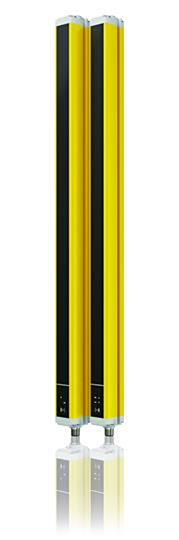

Orion1 Base Light Curtain, Transmitter + Receiver, Resolution=30mm (hand), Protected height=1650mm, Range=0.2-19m, Type 4. Orion1 Base is an easy to use light curtain with compact dimensions and two resolutions for detection of fingers and hands. Light curtains are usually used closed to the hazardous zone when repeated access to the machine is necessary, for example manually serviced machines. Light curtains can also be used to limit work zones inside the hazardous area and be mounted horizontally for area protection.
Technical Specification
- Function: Base light curtain for finger and hand detection.
- Resolution: 30 mm.
- Protected Height: 1650 mm.
- Operating Distance: 0.2 to 19 m.
- Type: Type 4 safety rating.
- Weight: 4.506 kg.
- Application: Suitable for hazardous zone access and area limitation.
- Detection: Optical detection of fingers and hands without muting.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the resolution of the Orion1 Base Light Curtain?
The resolution of the Orion1 Base Light Curtain is 30 mm, designed for the detection of fingers and hands.
What is the protected height of the Orion1 Base Light Curtain?
The protected height is 1650 mm.
What is the operating range of the Orion1 Base Light Curtain?
The operating distance ranges from 0.2 to 19 m.
What type of safety rating does the Orion1 Base Light Curtain have?
The Orion1 Base Light Curtain has a Type 4 safety rating.
Can the Orion1 Base Light Curtain be mounted horizontally?
Yes, it can be mounted horizontally for area protection.
What applications is the Orion1 Base Light Curtain suitable for?
It is suitable for hazardous zone access and area limitation in manually serviced machines.
What is the weight of the Orion1 Base Light Curtain?
The weight of the Orion1 Base Light Curtain is 4.506 kg.
| Manufacturer | ABB |
|---|---|
| HS Code | 85369095 |
| Barcode | 7350024481600 |
| Country of Manufacture | Hungary |
| Alternative Product SKU | Orion1-4-30-165-B |
| Manufacturer Part Number | 2TLA022302R1000 |
