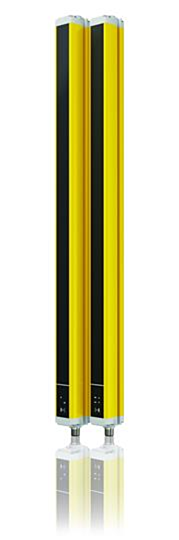

ABB orion1-4-30-135-b
MPN: 2TLA022302R0800
Alt. SKU: Orion1-4-30-135-B
Special Price
£1,802.22
£1,501.85
Regular Price
£2,120.26
Why Choose the Orion1-4-30-135-B [2TLA022302R0800]
Orion1 Base Light Curtain, Transmitter + Receiver, Resolution=30mm (hand), Protected height=1350mm, Range=0.2-19m, Type 4. Orion1 Base is an easy to use light curtain with compact dimensions and two resolutions for detection of fingers and hands. Light curtains are usually used closed to the hazardous zone when repeated access to the machine is necessary, for example manually serviced machines. Light curtains can also be used to limit work zones inside the hazardous area and be mounted horizontally for area protection.
Technical Specification
- Function: Type 4 light curtain for finger and hand detection without muting.
- Resolution: 30 mm (hand).
- Protected Height: 1350 mm.
- Operating Distance: 0.2–19 m.
- Weight: 3.726 kg.
- Category: Industrial electrical component.
- Typical Application: Safety guarding of hazardous zones with frequent access, suitable for manual service and area protection.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the resolution of the Orion1 Base Light Curtain?
The resolution of the Orion1 Base Light Curtain is 30 mm, designed for hand detection.
What is the protected height of the Orion1 Base Light Curtain?
The protected height of the Orion1 Base Light Curtain is 1350 mm.
What is the operating range of the Orion1 Base Light Curtain?
The operating distance of the Orion1 Base Light Curtain ranges from 0.2 to 19 metres.
Can the Orion1 Base Light Curtain be mounted horizontally?
Yes, the Orion1 Base Light Curtain can be mounted horizontally for area protection.
What type of applications is the Orion1 Base Light Curtain suitable for?
It is suitable for safety guarding of hazardous zones with frequent access, particularly for manually serviced machines.
What is the weight of the Orion1 Base Light Curtain?
The weight of the Orion1 Base Light Curtain is 3.726 kg.
What standards does the Orion1 Base Light Curtain conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer | ABB |
|---|---|
| Barcode | 7350024481587 |
| Alternative Product SKU | Orion1-4-30-135-B |
| Manufacturer Part Number | 2TLA022302R0800 |
| Product Lead Time | Contact us for a delivery time before you order |
