ABB orion1-4-30-120-b
MPN: 2TLA022302R0700
Alt. SKU: Orion1-4-30-120-B
Special Price
£1,664.50
£1,387.08
Regular Price
£1,958.23
Why Choose the Orion1-4-30-120-B [2TLA022302R0700]

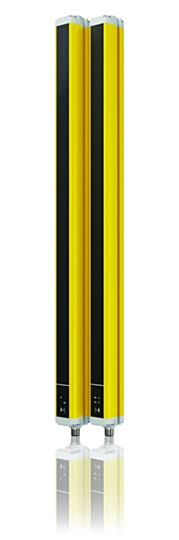

Orion1 Base Light Curtain, Transmitter + Receiver, Resolution=30mm (hand), Protected height=1200mm, Range=0.2-19m, Type 4. Orion1 Base is an easy to use light curtain with compact dimensions and two resolutions for detection of fingers and hands. Light curtains are usually used closed to the hazardous zone when repeated access to the machine is necessary, for example manually serviced machines. Light curtains can also be used to limit work zones inside the hazardous area and be mounted horizontally for area protection.
Technical Specification
- Function: Safety light curtain for finger and hand detection.
- Resolution: 30 mm.
- Protected Height: 1200 mm.
- Operating Distance: 0.2 to 19 m.
- Type: Type 4 safety device.
- Weight: 3.336 kg.
- Optical Detection: Finger and hand detection without muting.
- Category: Industrial electrical component.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the resolution of the Orion1 Base Light Curtain?
The resolution of the Orion1 Base Light Curtain is 30 mm, designed for finger and hand detection.
What is the protected height of the light curtain?
The protected height of the Orion1 Base Light Curtain is 1200 mm.
What is the operating range of the Orion1 Base Light Curtain?
The operating distance of the light curtain ranges from 0.2 to 19 m.
Is the Orion1 Base Light Curtain suitable for horizontal mounting?
Yes, the Orion1 Base Light Curtain can be mounted horizontally for area protection.
What type of safety device is the Orion1 Base Light Curtain?
The Orion1 Base Light Curtain is classified as a Type 4 safety device.
What is the weight of the Orion1 Base Light Curtain?
The weight of the Orion1 Base Light Curtain is 3.336 kg.
What standards and approvals does the Orion1 Base Light Curtain conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer | ABB |
|---|---|
| HS Code | 85371098 |
| Barcode | 7350024481570 |
| Country of Manufacture | Hungary |
| Alternative Product SKU | Orion1-4-30-120-B |
| Manufacturer Part Number | 2TLA022302R0700 |
