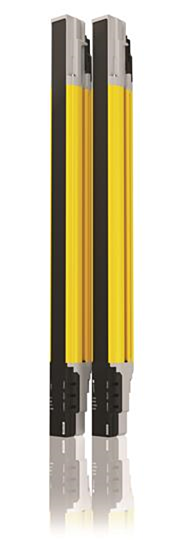

ABB orion1-4-30-030-e
MPN: 2TLA022303R0100
Alt. SKU: Orion1-4-30-030-E
Special Price
£1,049.94
£874.95
Regular Price
£1,235.22
Why Choose the Orion1-4-30-030-E [2TLA022303R0100]
Orion1 Extended Light Curtain, Transmitter + Receiver, Resolution=30mm (hand), Protected height=300mm, Range=0.2-20m, Type 4. Orion1 Extended is an easy to use light curtain with compact dimensions. It has two resolutions for detection of fingers and hands, and comes with advanced features like cascading, muting and blanking. Light curtains are usually placed closed to the hazardous zone when repeated access to the machine is necessary, for example manually serviced machines.
Technical Specification
- Function: Extended light curtain with transmitter and receiver for finger and hand detection.
- Resolution: 30 mm (hand detection).
- Protected Height: 300 mm optical field.
- Operating Distance: 0.2 to 20 metres.
- Safety Type: Type 4, suitable for high safety applications.
- Advanced Features: Cascading, muting, and blanking supported.
- Weight: 0.826 kg.
- Category: Industrial electrical component.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the resolution of the Orion1 Extended Light Curtain?
The resolution of the Orion1 Extended Light Curtain is 30 mm, designed for hand detection.
What is the protected height of the light curtain?
The protected height of the Orion1 Extended Light Curtain is 300 mm.
What is the operating range of the Orion1 Extended Light Curtain?
The operating distance ranges from 0.2 to 20 metres.
What safety type is the Orion1 Extended Light Curtain?
The Orion1 Extended Light Curtain is classified as Type 4, suitable for high safety applications.
What advanced features does the Orion1 Extended Light Curtain support?
It supports cascading, muting, and blanking features.
What is the weight of the Orion1 Extended Light Curtain?
The weight of the Orion1 Extended Light Curtain is 0.826 kg.
Are there any specific standards or approvals for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer | ABB |
|---|---|
| Barcode | 7350024481624 |
| Alternative Product SKU | Orion1-4-30-030-E |
| Manufacturer Part Number | 2TLA022303R0100 |
| Product Lead Time | Contact us for a delivery time before you order |
