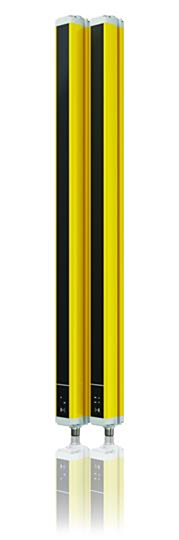

ABB orion1-4-14-120-b
MPN: 2TLA022300R0700
Alt. SKU: Orion1-4-14-120-B
Special Price
£2,609.08
£2,174.23
Regular Price
£3,069.50
Why Choose the Orion1-4-14-120-B [2TLA022300R0700]
Orion1 Base Light Curtain, Transmitter + Receiver, Resolution=14mm (finger), Protected height=1200mm, Range=0.2-6m, Type 4. Orion1 Base is an easy to use light curtain with compact dimensions and two resolutions for detection of fingers and hands. Light curtains are usually used closed to the hazardous zone when repeated access to the machine is necessary, for example manually serviced machines. Light curtains can also be used to limit work zones inside the hazardous area and be mounted horizontally for area protection.
Technical Specification
- Function: Light curtain for finger and hand detection.
- Resolution: 14 mm (finger detection).
- Protected Height: 1200 mm.
- Operating Distance: 0.2 to 6 metres.
- Type: Type 4 safety device.
- Weight: 3.336 kg.
- Application: Close-range protection for hazard zones with frequent access.
- Optical Detection: Finger and hand detection without muting.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the resolution of the Orion1 Base Light Curtain?
The resolution of the Orion1 Base Light Curtain is 14 mm, designed for finger detection.
What is the protected height of the light curtain?
The protected height of the Orion1 Base Light Curtain is 1200 mm.
What is the operating range of the Orion1 Base Light Curtain?
The operating distance of the Orion1 Base Light Curtain is between 0.2 to 6 metres.
What type of safety device is the Orion1 Base Light Curtain?
The Orion1 Base Light Curtain is classified as a Type 4 safety device.
Can the Orion1 Base Light Curtain be mounted horizontally?
Yes, the Orion1 Base Light Curtain can be mounted horizontally for area protection.
What is the weight of the Orion1 Base Light Curtain?
The weight of the Orion1 Base Light Curtain is 3.336 kg.
What applications is the Orion1 Base Light Curtain suitable for?
The Orion1 Base Light Curtain is suitable for close-range protection in hazard zones with frequent access, such as manually serviced machines.
| Manufacturer | ABB |
|---|---|
| HS Code | 85369095 |
| Barcode | 7350024481341 |
| Country of Manufacture | Hungary |
| Alternative Product SKU | Orion1-4-14-120-B |
| Manufacturer Part Number | 2TLA022300R0700 |
