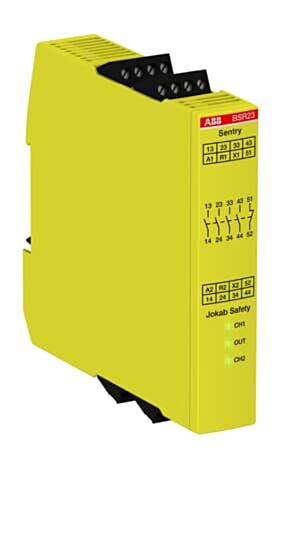

ABB SENTRY BSR23 24VDC 4no 1nc output
MPN: 2TLA010041R0600
Alt. SKU: SENTRY BSR23
Special Price
£128.27
£106.89
Regular Price
£150.90
This product replaces this item:
Why Choose the Sentry BSR23 [2TLA010041R0600]
Sentry BSR23 Safety expansion relay with relay outputs 4NO+1NC, +24 VDC supply voltage and screw terminals. Used as expansion relay for a safety relay/safety PLC, in order to increase the number of safe outputs. Sentry safety relays cover various types of safety applications up to PLe / SIL3. Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility. Models with display offer preset configurations and extensive information to further simplify troubleshooting. Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s. High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button. All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.
Technical Specification
- Function: Safety expansion relay for increasing safe outputs on safety relays or safety PLCs.
- Contact Configuration: 4 NO + 1 NC relay outputs.
- Supply Voltage: 24 V DC.
- Current Ratings: 5 A AC-15, 6 A DC-13 operational current.
- Degree of Protection: IP20.
- Terminal Type: Screw terminals with detachable push-in options available.
- Connecting Capacity: 0.2 to 3.3 mm² for single wires, 0.2 to 1.5 mm² for double wires.
- Tightening Torque: 0.7 N·m.
- Mounting: DIN Rail TH35-15 and TH35-7.5 (IEC 60715).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the Sentry BSR23 Safety expansion relay?
The Sentry BSR23 is used as an expansion relay to increase the number of safe outputs on safety relays or safety PLCs.
What is the contact configuration of the relay outputs?
The relay outputs are configured as 4 Normally Open (NO) and 1 Normally Closed (NC).
What is the maximum current capacity of the Sentry BSR23?
The relay can handle an operational current of up to 6 A DC-13.
What type of terminals does the Sentry BSR23 use?
The relay features screw terminals, with detachable push-in options available.
What is the tightening torque for the terminals?
The recommended tightening torque for the terminals is 0.7 N·m.
What is the degree of protection for the Sentry BSR23?
The degree of protection is IP20.
What are the mounting options for the Sentry BSR23?
The relay can be mounted on DIN Rail TH35-15 and TH35-7.5 (IEC 60715).
| Manufacturer Part Number | 2TLA010041R0600 |
|---|---|
| Barcode | 7350024483277 |
| HS Code | 85364900 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | SENTRY BSR23 |
