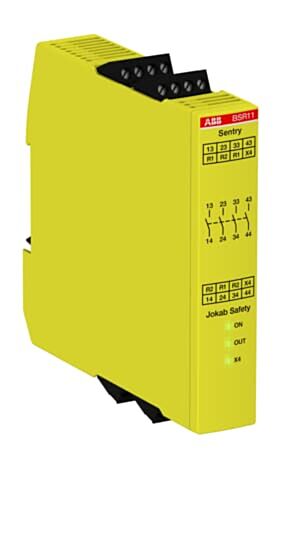

ABB SENTRY BSR11 24VDC 4no output
MPN: 2TLA010040R0200
Alt. SKU: SENTRY BSR11
Special Price
£131.47
£109.56
Regular Price
£154.67
Why Choose the Sentry BSR11 [2TLA010040R0200]
Sentry BSR11 Safety relay and expansion relay with relay outputs 4NO, +24 VDC supply voltage and screw terminals. For monitoring of safety devices, such as emergency stops, directly in the voltage supply circuit of the relay. Also suitable as expansion relay for a safety relay/safety PLC, in order to increase the number of safe outputs. Sentry safety relays cover various types of safety applications up to PLe / SIL3. Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility. Models with display offer preset configurations and extensive information to further simplify troubleshooting. Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s. High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button. All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.
Technical Specification
- Function: Safety expansion relay, no monitoring of two-channel fault.
- Supply Voltage: 24 V DC rated control supply.
- Contact Configuration: 4 NO relay outputs.
- Current Ratings: 5 A AC-15, 6 A DC-13 operational current.
- Degree of Protection: IP20.
- Terminal Type: Screw and detachable push-in terminals available.
- Terminal Capacity: Suitable for 0.2 to 3.3 mm² (solid, stranded, ferrules).
- Tightening Torque: 0.7 N·m.
- Mounting: DIN rail TH35-15 and TH35-7.5 compliant to IEC 60715.
- Standards: ISO 13849 certified.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the supply voltage for the Sentry BSR11 Safety relay?
The supply voltage for the Sentry BSR11 Safety relay is 24 V DC.
What is the contact configuration of the Sentry BSR11?
The Sentry BSR11 features a contact configuration of 4 normally open (NO) relay outputs.
What is the current rating for the relay outputs?
The relay outputs have a current rating of 5 A AC-15 and 6 A DC-13 operational current.
What is the terminal capacity for the Sentry BSR11?
The terminal capacity is suitable for 0.2 to 3.3 mm² conductors, including solid, stranded, and ferrules.
How can the Sentry BSR11 be mounted?
The Sentry BSR11 can be mounted on DIN rail TH35-15 and TH35-7.5, compliant with IEC 60715.
What safety standards does the Sentry BSR11 comply with?
The Sentry BSR11 is ISO 13849 certified. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2TLA010040R0200 |
|---|---|
| Barcode | 7350024483260 |
| HS Code | 85364900 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | SENTRY BSR11 |
