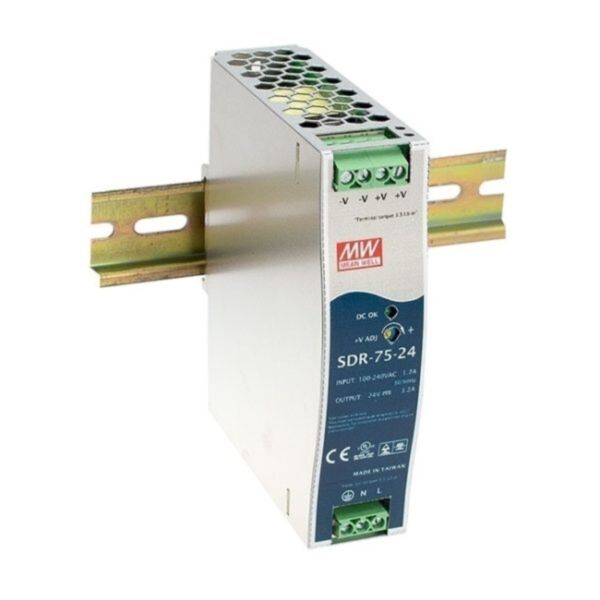

SDR-75-24 Power Supply 90-264VAC 1 phase input, output 24 volts DC 3.2 Amps
MPN: SDR-75-24
Alt. SKU: SDR7524
Special Price
£38.14
£31.78
Regular Price
£54.48
Why Choose the Mean Well SDR-75-24 DIN Rail Power Supply?
The Mean Well SDR-75-24 is a slim, high-efficiency 75W DIN rail power supply engineered for industrial automation, process control, and compact panel installations. With a steady 24V DC output at 3.2A, it features a wide input voltage range, advanced safety protections, and DC OK relay contact for robust monitoring. This model is ideal for applications demanding both reliability and space-saving integration.
Key Takeaways
- Output: 24V DC at 3.2A (76.8W)
- Input Voltage: 88–264V AC / 124–370V DC
- High efficiency up to 90%
- Protections: Short circuit, overload, over voltage, over temperature
- DC OK relay contact for remote monitoring
- Cooling by free air convection
- DIN rail mountable (TS35/7.5 or TS35/15)
- Slim metal case: 32mm width
- Operating temperature: -25°C to +70°C
- Compliance: UL508, EN61000-6-2, EN61000-6-4, TUV EN62368-1, CE
Frequently Asked Questions About the Mean Well SDR-75-24
- What is the output voltage and current of the SDR-75-24?
- What are the input voltage ranges supported?
- What protection features are included?
- Does this model support remote DC OK monitoring?
- What are the mounting options?
Mean Well SDR-75-24 Overview
The SDR-75-24 is part of Mean Well’s advanced SDR series of slim DIN rail power supplies. It delivers a reliable 24V DC at 3.2A with active PFC, a compact metal case, and comprehensive protections. This ensures safe operation in harsh industrial environments and provides flexible installation in tight control panels or cabinets.
Speed & Safety Benefits
- Quick installation: Slim DIN rail mounting saves valuable space and speeds up wiring
- Enhanced safety: Advanced protections for both equipment and operators
- Efficient operation: High efficiency reduces energy use and minimizes heat output
Key Features of the Mean Well SDR-75-24
- Output: 24V DC at 3.2A (76.8W)
- Input Voltage: 88–264V AC / 124–370V DC
- High efficiency up to 90%
- Protections: Short circuit, overload, over voltage, over temperature
- DC OK relay contact for remote monitoring
- Cooling by free air convection
- DIN rail mountable (TS35/7.5 or TS35/15)
- Slim metal case: 32mm width
- Operating temperature: -25°C to +70°C
- Compliance: UL508, EN61000-6-2, EN61000-6-4, TUV EN62368-1, CE
The SDR-75-24 provides a 24V DC output at 3.2A, delivering a total power of 76.8W.
It supports a wide input voltage range of 88–264V AC and 124–370V DC, suitable for global applications and flexible system integration.
This power supply includes short circuit, overload, over voltage, and over temperature protections for safe and reliable operation in demanding environments.
Yes, the SDR-75-24 features a DC OK relay contact for remote output monitoring and integration with control systems.
This model is designed for DIN rail mounting (TS35/7.5 or TS35/15), enabling fast and secure installation in control panels and enclosures.
Choose the Mean Well SDR-75-24 DIN Rail Power Supply for compact, efficient, and reliable power in your industrial and automation projects.
