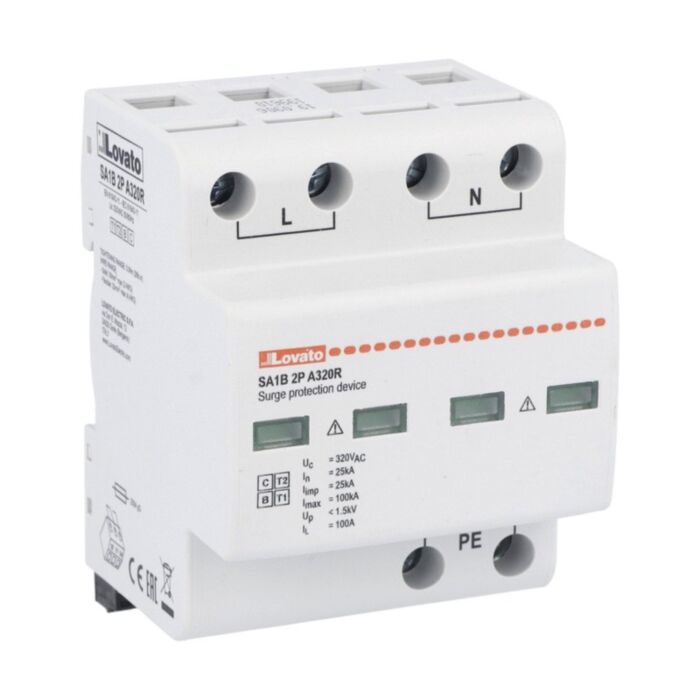

SA1B2PA320R - SURGE PROTECTION DEVICE TYPE 1-2 2P

Why Choose the SA1B2PA320R?

Lovato’s SA1B2PA320R surge protection device is a Type 1 and 2 SPD for 230/400VAC systems. This 2‑pole monoblock delivers Iimp 25kA per pole to withstand severe transients at the service entrance. DIN rail mounting streamlines panel installation, and the integrated remote contact allows connection to monitoring or control circuits. Built for AC applications, it provides dependable protection for main and sub‑distribution boards in commercial, industrial, and infrastructure environments.

Engineered to IEC/EN 61643-11, the SA1B family ensures reliable performance under demanding conditions. The unit offers nominal discharge current In 25kA and short-circuit rating Isccr 25kA, supporting robust fault withstand. It operates from -40 to +80 °C up to 2000 m altitude, in a compact 395 g housing. With the SA1B type designation, this DIN-rail SPD integrates cleanly into panels, delivering consistent surge mitigation across AC distribution networks.

Key Benefits

• Type 1 and 2 protection for service entrance and downstream boards.
• 2-pole monoblock suited to 230/400VAC AC systems.
• Iimp 25kA per pole withstands high-energy surges.
• Nominal discharge current In 25kA supports repeated surge events.
• Isccr 25kA rating for robust short-circuit withstand.
• DIN rail mounting for fast, tidy panel integration.
• Integrated remote contact for connection to monitoring circuits.
• Conforms to IEC/EN 61643-11 for trusted compliance.

Technical Specification

• Product type designation: SA1B
• Operating voltage type: AC
• Operating temperature: -40 to +80 °C
• Max altitude: 2000 m
• Weight: 395 g

What’s Included

• SA1B2PA320R Type 1 and 2 SPD, 2-pole monoblock
• Built-in remote contact terminals
• Installation guide

Applications

• Main distribution boards on 230/400VAC networks
• Sub-distribution panels in commercial buildings
• Industrial control panels and machinery supplies
• Infrastructure power cabinets and switchgear

Safety note: Installation must be performed by a qualified electrician. Isolate the supply before work, ensure correct earthing, and adhere to IEC/EN 61643-11 and local regulations. Do not exceed specified ratings.
