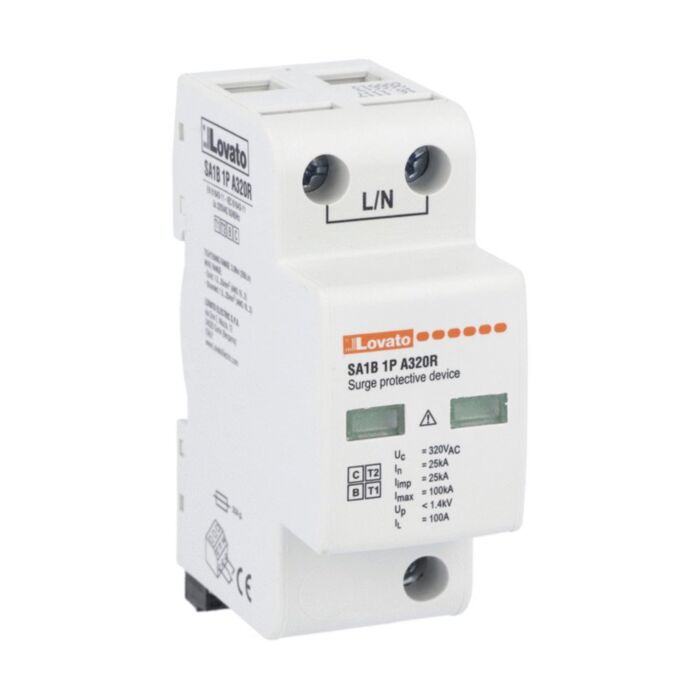

SA1B1PA320R - SURGE PROTECTION DEVICE TYPE 1-2 1P
MPN: SA1B1PA320R
Special Price
£179.96
£149.97
Regular Price
£299.94
Why Choose the SA1B1PA320R?
Lovato SA1B1PA320R is a Type 1 and 2 monoblock SPD for 230/400VAC systems. This 1P device handles an IEC impulse current Iimp of 25 kA per pole and a nominal discharge current In of 25 kA for dependable performance. DIN rail mounting simplifies panel installation, and the integrated remote contact enables straightforward status signalling to external monitoring or control equipment.
Built for demanding environments, this AC-operated SPD performs from -40 to +80 °C and up to 2000 m altitude. Conforming to IEC/EN 61643-11, it supports reliable surge protection across distribution and control assemblies. The compact, 275 g construction and SA1B product family designation help streamline specification and stocking, making it a practical choice for new builds and upgrades.
Key Benefits
- Combined Type 1+2 protection in a single monoblock device.
- 25 kA Iimp per pole for high surge discharge capability.
- 1P configuration suited to 230/400VAC single-pole applications.
- DIN rail mounting enables fast, tidy panel integration.
- Remote contact provides simple status signalling to monitoring systems.
- Rated In 25 kA and Isccr 25 kA for reliability.
- Wide -40 to +80 °C operating temperature range.
- IEC/EN 61643-11 conformity for assured compliance.
Technical Specification
- Product type designation: SA1B
- Operating voltage type: AC
- Operating temperature: -40 to +80 °C
- Max altitude: 2000 m
- Weight: 275 g
What’s Included
- SA1B1PA320R Type 1+2 SPD (1P) with remote contact
- Installation instructions/datasheet
- Protective packaging
Applications
- 230/400VAC distribution boards requiring Type 1 and 2 surge protection
- Industrial and commercial control panels with DIN rail mounting
- Equipment panels needing 1P surge protection with remote status signalling
- Upgrades and retrofits in AC installations compliant with IEC/EN 61643-11
Frequently Asked Questions
What system voltages is the SA1B1PA320R designed for?
It is designed for 230/400VAC AC systems.
What is the impulse current rating per pole?
The IEC impulse current Iimp per pole is 25 kA.
How is the device mounted in the panel?
It mounts on a DIN rail for quick installation.
Does it offer remote signalling?
Yes, it includes a remote contact for simple status signalling integration.
What standards does this SPD conform to?
It conforms to IEC/EN 61643-11.
Safety note: Installation and servicing must be carried out by qualified electricians with the supply isolated. Use only within the stated ratings and environmental limits, and follow IEC/EN 61643-11 and local regulations.
| Manufacturer Part Number | SA1B1PA320R |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975217597 |
