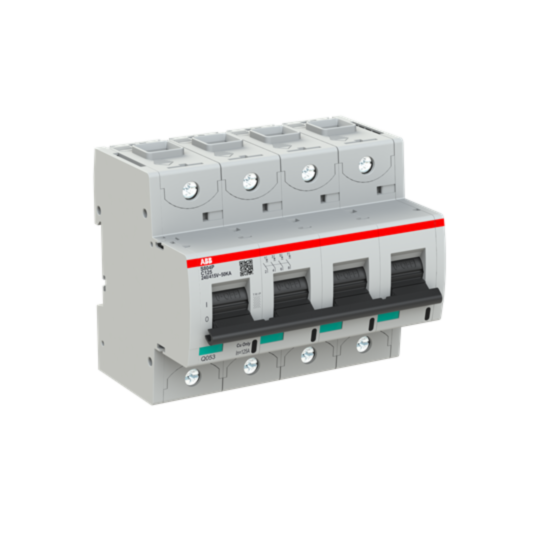

S804P-C125 High Performance MCB
MPN: 2CCG001237R0001
Alt. SKU: S804P-C125
Special Price
£393.40
£327.83
Regular Price
£605.23
Why Choose the S804P-C125 [2CCG001237R0001]
S804P-C125 High Performance Circuit Breaker. C Characteristic. 50kA, 125A, 4P
Technical Specification
- Function: High performance 4-pole circuit breaker with C characteristic trip curve.
- Rated Current: 125 A.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): Up to 50 kA at 415 V AC.
- Rated Service Short-Circuit Breaking Capacity (Ics): 40 kA at 240/415 V AC.
- Contact Configuration: 4 poles (4P) with ON / OFF / TRIP indication.
- Connecting Capacity: Flexible cables 1–50 mm², rigid cables 1–70 mm².
- Tightening Torque: 3.5 N·m.
- Release Type: Type C for moderate inrush current protection.
- Wire Stripping Length: 19 mm.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the S804P-C125 circuit breaker?
The rated current is 125 A.
What is the short-circuit breaking capacity of this circuit breaker?
The rated ultimate short-circuit breaking capacity (Icu) is up to 50 kA at 415 V AC.
What types of cables can be connected to the S804P-C125?
It can connect flexible cables of 1–50 mm² and rigid cables of 1–70 mm².
What is the tightening torque for this circuit breaker?
The tightening torque is 3.5 N·m.
What is the release type of the S804P-C125?
The release type is Type C, designed for moderate inrush current protection.
How many poles does the S804P-C125 circuit breaker have?
It has 4 poles (4P) with ON / OFF / TRIP indication.
What is the wire stripping length required for this circuit breaker?
The wire stripping length is 19 mm.
| Manufacturer Part Number | 2CCG001237R0001 |
|---|---|
| Height | 95mm |
| Width | 117mm |
| Depth | 82.5mm |
| Amperage | 125A |
| Number of Poles | 4 Pole |
| Trip Curve Type | C |
| HS Code | 85362090 |
| Country of Manufacture | Switzerland |
| Manufacturer | ABB |
| Alternative Product SKU | S804P-C125 |
| Barcode | 7612271517069 |
