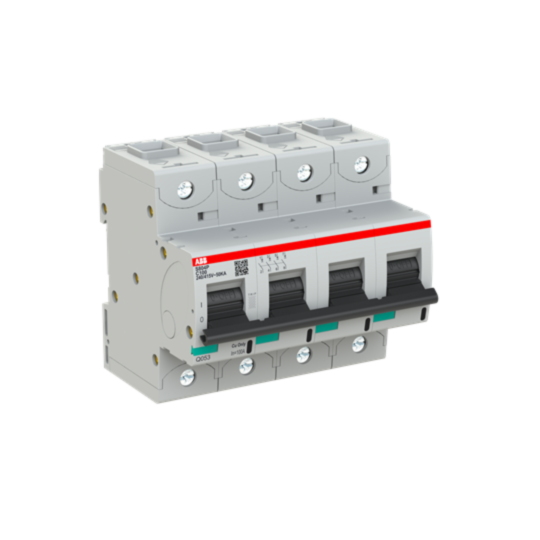

S804P-C100 High Performance MCB
MPN: 2CCG001236R0001
Alt. SKU: S804P-C100
Special Price
£350.48
£292.07
Regular Price
£539.21
Why Choose the S804P-C100 [2CCG001236R0001]
S804P-C100 High Performance Circuit Breaker. C Characteristic. 50kA, 100A, 4P
Technical Specification
- Function: High performance 4-pole circuit breaker with C characteristic.
- Rated Current: 100 A.
- Breaking Capacity (Icu): 50 kA at 415 V AC, 30 kA at 440 V AC, 10 kA at 500 V AC, 4.5 kA at 690 V AC, 30 kA at 500 V DC.
- Service Breaking Capacity (Ics): 40 kA at 240/415 V AC.
- Contact Configuration: 4 poles with ON/OFF/TRIP indicator.
- Connecting Capacity: Flexible cables 1–50 mm², rigid cables 1–70 mm².
- Tightening Torque: 3.5 N·m.
- Energy Limiting Class: 3.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the S804P-C100 circuit breaker?
The rated current is 100 A.
What is the breaking capacity of this circuit breaker?
The breaking capacity is 50 kA at 415 V AC, 30 kA at 440 V AC, 10 kA at 500 V AC, 4.5 kA at 690 V AC, and 30 kA at 500 V DC.
What types of cables can be connected to the S804P-C100?
It can connect flexible cables from 1–50 mm² and rigid cables from 1–70 mm².
What is the tightening torque for this circuit breaker?
The tightening torque is 3.5 N·m.
What is the energy limiting class of the S804P-C100?
The energy limiting class is 3.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CCG001236R0001 |
|---|---|
| Height | 95mm |
| Width | 106mm |
| Depth | 82.5mm |
| Amperage | 100A |
| Number of Poles | 4 Pole |
| Trip Curve Type | C |
| Manufacturer | ABB |
| Alternative Product SKU | S804P-C100 |
| Barcode | 7612271517052 |
