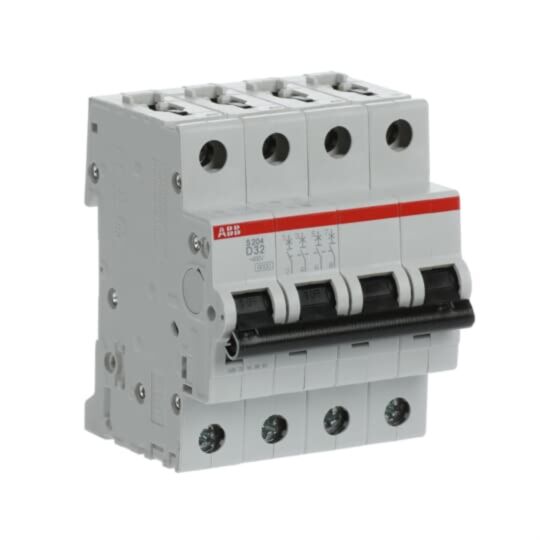

S204-D32 Miniature Circuit Breaker - 4P - D - 32 A
MPN: 2CDS254001R0321
Alt. SKU: S204D32
Special Price
£133.16
£110.97
Regular Price
£242.11
Why Choose the S204-D32 [2CDS254001R0321]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Current limiting miniature circuit breaker with thermal and electromechanic tripping for overload and short circuit protection.
- Rated Current: Up to 32 A (model S204-D32).
- Voltage Rating: 230/400 V AC, max operating voltage 480Y/277 V AC, 110 V DC.
- Breaking Capacity: Rated ultimate short-circuit breaking capacity up to 20 kA at 230 V AC, 10 kA at 400/440 V AC.
- Contact Configuration: 4 poles (4P) with red ON/green OFF indication.
- Terminal Type and Size: Screw terminals; compatible with busbars 10/10 mm², flexible cables 0.75–25 mm² and rigid cables up to 35 mm².
- Insulation and Dielectric Strength: Insulation Group II; dielectric test voltage 2 kV at 50/60 Hz for 1 minute.
- Mechanical and Electrical Endurance: 20,000 mechanical cycles; 10,000 AC electrical cycles.
- Tightening Torque: 2.8 N·m (18 in·lb for UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the tripping mechanisms used in the S200 miniature circuit breakers?
The S200 miniature circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection.
What is the maximum breaking capacity of the S200 circuit breakers?
The S200 circuit breakers have a rated ultimate short-circuit breaking capacity of up to 20 kA at 230 V AC and 10 kA at 400/440 V AC.
What is the rated current capacity for the S204-D32 model?
The S204-D32 model has a rated current capacity of up to 32 A.
What types of cables are compatible with the S200 circuit breakers?
The S200 circuit breakers are compatible with flexible cables ranging from 0.75 to 25 mm² and rigid cables up to 35 mm².
Can auxiliary contacts be mounted on the S200 circuit breakers?
Yes, bottom-fitting auxiliary contacts can be mounted on the S200 circuit breakers, allowing for a space-saving installation.
What standards do the S200 circuit breakers comply with?
All MCBs of the S200 range comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS254001R0321 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779531306 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 32A |
| Alternative Product SKU | S204D32 |
