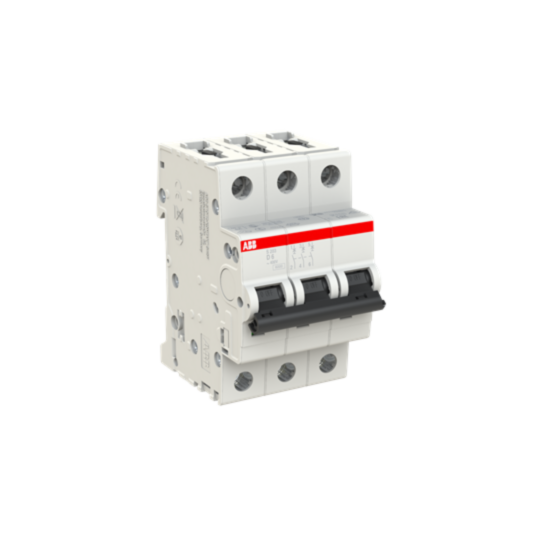

S203-D6 Miniature Circuit Breaker - 3P - D - 6 A
MPN: 2CDS253001R0061
Alt. SKU: S203-D6
Special Price
£53.44
£44.53
Regular Price
£97.16
Why Choose the S203-D6 [2CDS253001R0061]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Three-pole miniature circuit breaker with thermal and electromechanical tripping for overload and short-circuit protection.
- Rated Current: Up to 63 A.
- Voltage Ratings: 230/400/440 V AC.
- Short-Circuit Breaking Capacity: 20 kA at 230 V AC; 10 kA at 400/440 V AC.
- Contact Configuration: 3 poles (3P).
- Terminal Type and Capacity: Screw terminals; suitable for flexible and rigid conductors from 0.75 to 35 mm².
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Actuator: Insulated, sealable black toggle with red ON / green OFF indication.
- Tightening Torque: 2.8 N·m (18 in·lb for UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum rated current for the S200 miniature circuit breakers?
The maximum rated current for the S200 miniature circuit breakers is up to 63 A.
What are the available configurations for the S200 circuit breakers?
The S200 circuit breakers are available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the short-circuit breaking capacity of the S200 at 230 V AC?
The short-circuit breaking capacity of the S200 at 230 V AC is 20 kA.
What conductor sizes are compatible with the S200 circuit breakers?
The S200 circuit breakers are suitable for flexible and rigid conductors from 0.75 to 35 mm².
Can auxiliary contacts be mounted on the S200 circuit breakers?
Yes, bottom-fitting auxiliary contacts can be mounted on the S200 to save 50% space.
What standards do the S200 circuit breakers comply with?
All S200 circuit breakers comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS253001R0061 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779530880 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 6A |
| Alternative Product SKU | S203-D6 |
