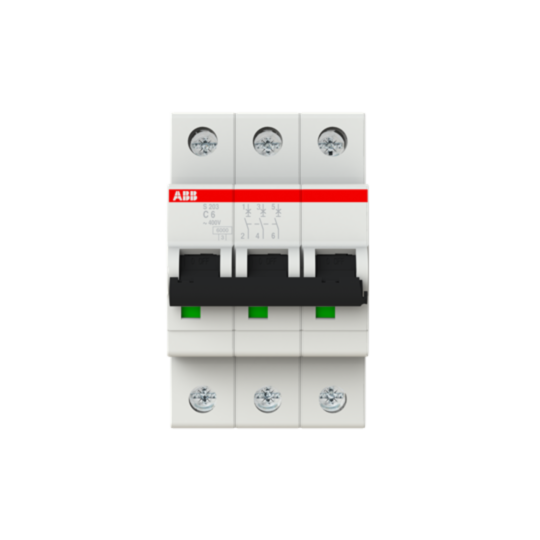

S203-C6 Miniature Circuit Breaker - 3P - C - 6 A
MPN: 2CDS253001R0064
Alt. SKU: S203-C6
Special Price
£50.24
£41.87
Regular Price
£91.36
Why Choose the S203-C6 [2CDS253001R0064]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: 3-pole miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Voltage Ratings: Rated operational voltage up to 400 V AC, maximum operating voltage UL/CSA 480Y/277 V AC, 110 V DC.
- Current Rating: Rated current 6 A.
- Breaking Capacity: Ultimate short-circuit breaking capacity 20 kA at 230 V AC, 10 kA at 400/440 V AC; service breaking capacity 15 kA at 230 V AC, 7.5 kA at 400/440 V AC.
- Contact Configuration: 3 poles (3P) with toggle actuator, contact position indicated by red ON / green OFF.
- Terminal Type and Size: Screw terminals, connecting capacity flexible 0.75–25 mm², rigid/stranded 0.75–35 mm², busbar 10/10 mm².
- Insulation and Impulse Ratings: Dielectric test voltage 2 kV (50/60 Hz, 1 min), Energy limiting class 3.
- Durability: Electrical and mechanical endurance both 20,000 cycles.
- Tightening Torque: 2.8 N·m for terminals, 18 in·lbf for UL/CSA terminals.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the System pro M compact S200 miniature circuit breakers?
The S200 miniature circuit breakers provide overload protection through a delayed thermal tripping mechanism and short circuit protection via an electromechanical tripping mechanism.
What are the available configurations for the S200 MCBs?
The S200 MCBs are available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the maximum breaking capacity of the S200 MCBs?
The ultimate short-circuit breaking capacity is 20 kA at 230 V AC and 10 kA at 400/440 V AC.
What is the rated current for the S200 MCBs?
The rated current for the S200 MCBs is up to 63 A.
What is the cable capacity for the terminals of the S200 MCBs?
The connecting capacity for flexible cables is 0.75–25 mm², and for rigid/stranded cables, it is 0.75–35 mm².
Can auxiliary contacts be mounted on the S200 MCBs?
Yes, bottom-fitting auxiliary contacts can be mounted on the S200 MCBs, saving 50% space.
What standards do the S200 MCBs comply with?
All MCBs in the S200 range comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS253001R0064 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779467506 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 6A |
| Alternative Product SKU | S203-C6 |
