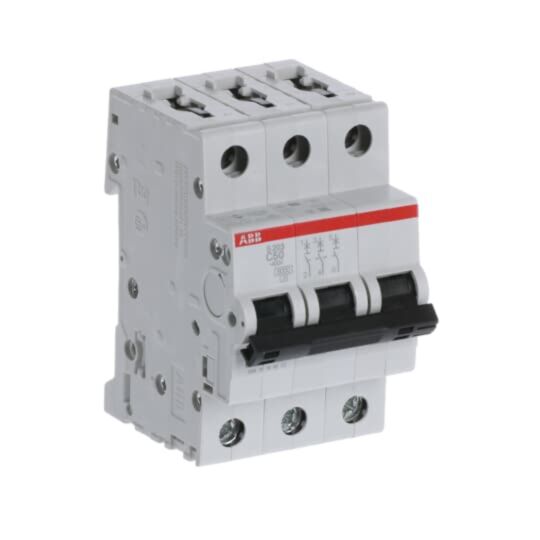

S203-C50 Miniature Circuit Breaker - 3P - C - 50 A
MPN: 2CDS253001R0504
Alt. SKU: S203C50
Special Price
£55.38
£46.15
Regular Price
£100.69
Why Choose the S203-C50 [2CDS253001R0504]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Current limiting miniature circuit breaker with thermal and electromechanic tripping mechanisms for overload and short circuit protection.
- Rated Current: Up to 50 A.
- Voltage Ratings: 230/400 V AC; Maximum operating voltage UL/CSA 110 V DC, 480Y/277 V AC.
- Contact Configuration: 3 poles (3P) with red ON/green OFF position indication.
- Breaking Capacity: Ultimate short-circuit breaking capacity 20 kA (230 V AC) / 10 kA (400 V AC); service breaking capacity 15 kA (230 V AC) / 7.5 kA (400 V AC).
- Terminal Type and Size Range: Screw terminals; busbar 10/10 mm²; flexible and rigid conductors 0.75 to 35 mm².
- Mechanical and Electrical Endurance: 20,000 mechanical cycles; 10,000 AC electrical cycles.
- Tightening Torque: 2.8 N·m (standard), 18 in·lb (UL/CSA).
- Insulation and Dielectric: Dielectric test voltage 2 kV at 50/60 Hz for 1 min; impulse withstand class 3.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the tripping mechanisms used in the S200 miniature circuit breakers?
The S200 miniature circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection.
What is the maximum breaking capacity of the S200 circuit breakers?
The ultimate short-circuit breaking capacity is 20 kA at 230 V AC and 10 kA at 400 V AC.
What is the rated current range for the S200 circuit breakers?
The rated current for the S200 circuit breakers is up to 63 A.
What types of conductors can be used with the S200 circuit breakers?
The S200 circuit breakers can accommodate flexible and rigid conductors ranging from 0.75 to 35 mm².
Can auxiliary contacts be mounted on the S200 circuit breakers?
Yes, a bottom-fitting auxiliary contact can be mounted on the S200 to save 50% space.
What are the voltage ratings for the S200 circuit breakers?
The voltage ratings for the S200 circuit breakers are 230/400 V AC and a maximum operating voltage of 110 V DC, 480Y/277 V AC.
What standards do the S200 circuit breakers comply with?
All MCBs of the S200 range comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS253001R0504 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779551069 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 50A |
| Alternative Product SKU | S203C50 |
