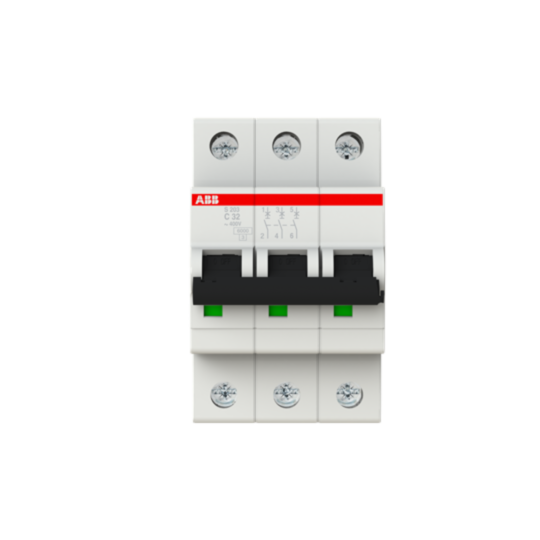

S203-C32 Miniature Circuit Breaker - 3P - C - 32 A
MPN: 2CDS253001R0324
Alt. SKU: S203-C32
Special Price
£48.90
£40.75
Regular Price
£88.91
Why Choose the S203-C32 [2CDS253001R0324]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: 3-pole miniature circuit breaker with thermal and electromechanical trip for overload and short circuit protection.
- Rated Current: 32 A.
- Rated Ultimate Short-Circuit Breaking Capacity: 20 kA at 230 V AC, 10 kA at 400/440 V AC.
- Rated Service Short-Circuit Breaking Capacity: 15 kA at 230 V AC, 7.5 kA at 400/440 V AC.
- Contact Configuration: 3 poles (3P) with red ON/green OFF indication.
- Terminal Type and Capacity: Failsafe bi-directional screw terminals; accepts flexible 0.75–25 mm² and rigid 0.75–35 mm² cables.
- Dielectric Test Voltage: 2 kV at 50/60 Hz, 1 minute.
- Mechanical Endurance: 20,000 cycles; Electrical Endurance: 10,000 AC cycles.
- Tightening Torque: 2.8 N·m (18 in·lbs UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the System pro M compact S200 miniature circuit breakers?
They provide overload protection via a delayed thermal tripping mechanism and short circuit protection through an electromechanical tripping mechanism.
What are the available configurations for the S200 circuit breakers?
The S200 circuit breakers are available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the maximum breaking capacity of the S200 circuit breakers?
The maximum breaking capacity is up to 6 kA at 230/400 V AC.
What is the rated current for the S200 circuit breakers?
The rated current can go up to 63 A.
What type of cables can be used with the S200 circuit breakers?
They accept flexible cables from 0.75 to 25 mm² and rigid cables from 0.75 to 35 mm².
How many cycles can the S200 circuit breakers endure?
They have a mechanical endurance of 20,000 cycles and an electrical endurance of 10,000 AC cycles.
What standards do the S200 circuit breakers comply with?
They comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS253001R0324 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779468305 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 32A |
| Alternative Product SKU | S203-C32 |
