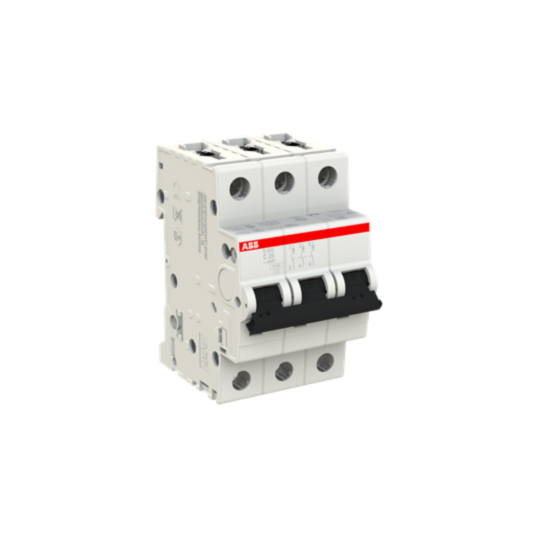

S203-C25 Miniature Circuit Breaker - 3P - C - 25 A
MPN: 2CDS253001R0254
Alt. SKU: S203-C25
Special Price
£49.14
£40.95
Regular Price
£89.35
Why Choose the S203-C25 [2CDS253001R0254]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Miniature Circuit Breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Rated Voltage: Up to 440 V AC.
- Breaking Capacity: Ultimate up to 20 kA (230 V AC), 10 kA (400/440 V AC); Service up to 15 kA (230 V AC), 7.5 kA (400/440 V AC).
- Rated Current: Up to 63 A.
- Poles: 3 poles (3P configuration).
- Terminal Type: Screw terminals with failsafe bi-directional cylinder-lift design.
- Wiring Capacity: 0.75–35 mm² for flexible and rigid conductors; busbar 10/10 mm².
- Mechanical & Electrical Endurance: 20,000 cycles each.
- Insulation & Dielectric Rating: Dielectric test voltage 2 kV at 50/60 Hz for 1 minute; insulation group II.
- Contact Indication: Red ON / Green OFF display.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the tripping mechanisms of the S200 miniature circuit breakers?
The S200 miniature circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short circuit protection.
What is the maximum breaking capacity of the S200 MCBs?
The ultimate breaking capacity is up to 20 kA at 230 V AC and 10 kA at 400/440 V AC.
What configurations are available for the S200 series?
The S200 series is available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the rated current range for the S200 MCBs?
The rated current for the S200 MCBs is up to 63 A.
What is the wiring capacity for the terminals?
The wiring capacity is 0.75–35 mm² for flexible and rigid conductors, with a busbar capacity of 10/10 mm².
Can auxiliary contacts be mounted on the S200 MCBs?
Yes, bottom-fitting auxiliary contacts can be mounted on the S200 to save 50% space.
Are the S200 MCBs compliant with any standards?
Yes, all MCBs in the S200 range comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS253001R0254 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779468206 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 25A |
| Alternative Product SKU | S203-C25 |
