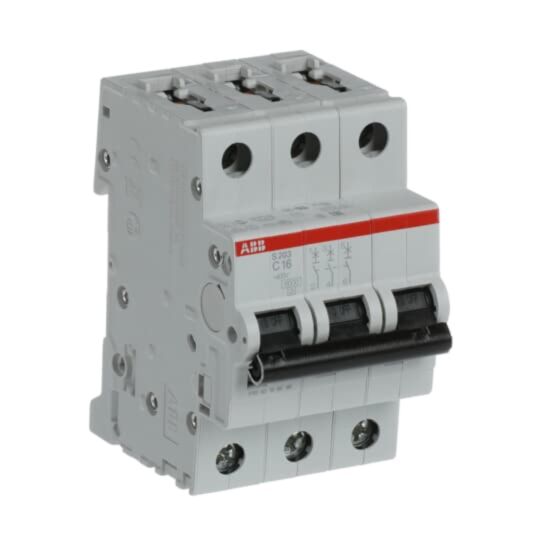

S203-C16 Miniature Circuit Breaker - 3P - C - 16 A
MPN: 2CDS253001R0164
Alt. SKU: S203-C16
Special Price
£48.90
£40.75
Regular Price
£88.91
Why Choose the S203-C16 [2CDS253001R0164]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Rated Current: Up to 63 A.
- Voltage Rating: Up to 440 V AC, suitable for 230/400 V AC networks.
- Contact Configuration: 3 poles (3P) with red ON / green OFF position indication.
- Breaking Capacity: Ultimate 20 kA at 230 V AC, 10 kA at 400/440 V AC; Service 15 kA at 230 V AC, 7.5 kA at 400/440 V AC.
- Terminal Type and Capacity: Screw terminals; accepts busbars 10/10 mm², flexible cables 0.75–25 mm², rigid and stranded cables up to 35 mm².
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Tightening Torque: 2.8 N·m (18 in·lb for UL/CSA).
- Actuator: Toggle type, black insulation, sealable with I/O marking.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum rated current for the S200 miniature circuit breakers?
The S200 miniature circuit breakers have a maximum rated current of up to 63 A.
What are the available configurations for the S200 circuit breakers?
The S200 circuit breakers are available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the breaking capacity of the S200 circuit breakers?
The breaking capacity is up to 6 kA at 230/400 V AC, with an ultimate breaking capacity of 20 kA at 230 V AC and 10 kA at 400/440 V AC.
Can I use flexible cables with the S200 circuit breakers?
Yes, the S200 circuit breakers accept flexible cables from 0.75 to 25 mm².
What standards do the S200 miniature circuit breakers comply with?
All S200 MCBs comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077.
Is it possible to mount auxiliary contacts on the S200 circuit breakers?
Yes, a bottom-fitting auxiliary contact can be mounted on the S200 to save 50% space.
What is the dielectric test voltage for the S200 circuit breakers?
The dielectric test voltage is 2 kV at 50/60 Hz for 1 minute.
| Manufacturer Part Number | 2CDS253001R0164 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779468008 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 16A |
| Alternative Product SKU | S203-C16 |
