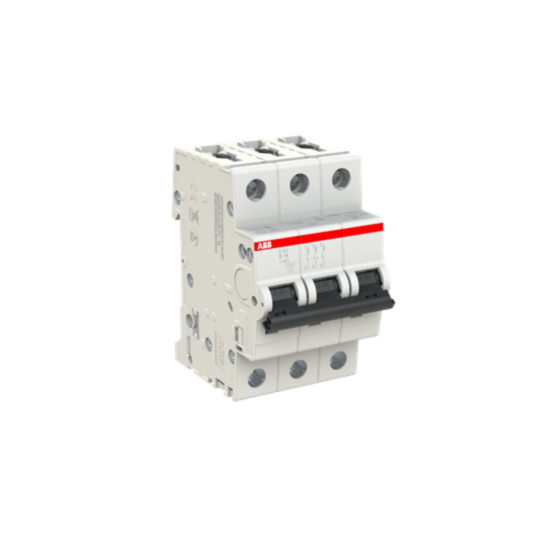

S203-B16 Miniature Circuit Breaker - 3P - B - 16 A
MPN: 2CDS253001R0165
Alt. SKU: S203-B16
Special Price
£47.65
£39.71
Regular Price
£86.64
Why Choose the S203-B16 [2CDS253001R0165]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Current limiting miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Voltage Ratings: Rated operating voltage up to 440 V AC, maximum operating voltage UL/CSA 110 V DC, 480Y/277 V AC.
- Current Rating: 16 A (S203-B16 model).
- Contact Configuration: 3 poles (3P) with red ON/green OFF position indication.
- Breaking Capacity: Ultimate short-circuit breaking capacity up to 20 kA at 230 V AC and 10 kA at 400/440 V AC.
- Terminal Type & Capacity: Screw terminals; accommodates busbar 10/10 mm², flexible up to 25 mm², rigid up to 35 mm².
- Mechanical & Electrical Endurance: Rated for 20,000 operational cycles.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
- Energy Limiting Class: Class 3 for enhanced protection.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the tripping mechanisms used in the S200 miniature circuit breakers?
The S200 miniature circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short circuit protection.
What is the maximum breaking capacity of the S200 MCBs?
The ultimate short-circuit breaking capacity is up to 20 kA at 230 V AC and 10 kA at 400/440 V AC.
What are the available configurations for the S200 circuit breakers?
The S200 circuit breakers are available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the rated current for the S203-B16 model?
The rated current for the S203-B16 model is 16 A.
What types of terminals do the S200 MCBs use?
The S200 MCBs use screw terminals that accommodate busbar 10/10 mm², flexible conductors up to 25 mm², and rigid conductors up to 35 mm².
Are the S200 MCBs suitable for industrial applications?
Yes, the S200 MCBs comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077, making them suitable for residential, commercial, and industrial applications.
What is the mechanical and electrical endurance of the S200 MCBs?
The S200 MCBs are rated for 20,000 operational cycles.
| Manufacturer Part Number | 2CDS253001R0165 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779469005 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 16A |
| Alternative Product SKU | S203-B16 |
