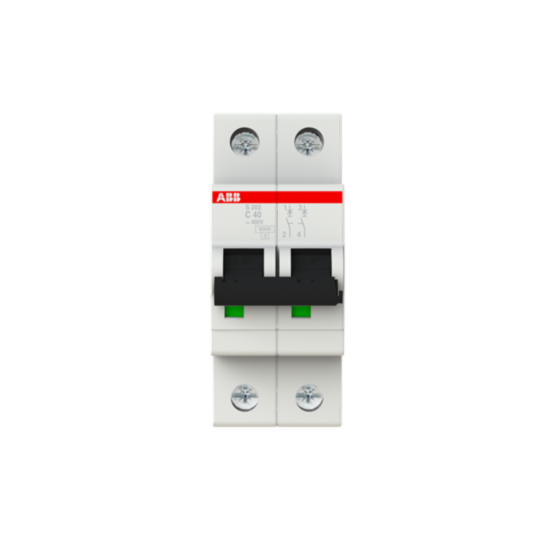

S202-C40 Miniature Circuit Breaker - 2P - C - 40 A
MPN: 2CDS252001R0404
Alt. SKU: S202-C40
Special Price
£35.40
£29.50
Regular Price
£64.37
Why Choose the S202-C40 [2CDS252001R0404]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Miniature Circuit Breaker with thermal overload and electromagnetic short circuit protection.
- Rated Current: Up to 40A (model S202-C40).
- Voltage Rating: 230/400 V AC, 125 V DC, 48 V DC.
- Breaking Capacity: Up to 20 kA (230 V AC), 10 kA (400 V AC).
- Poles: 2-pole (2P) configuration.
- Terminal Type: Screw terminals, cylindrical lift, bi-directional, with capacity for 0.75 to 35 mm² conductors.
- Contact Position Indication: Red (ON) / Green (OFF) status indication.
- Mechanical Endurance: 20,000 operating cycles.
- Electrical Endurance: 10,000 AC operating cycles.
- Installation Size: DIN 43880 standard, size 1 module width.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum rated current for the S200 miniature circuit breakers?
The maximum rated current for the S200 miniature circuit breakers is up to 63A.
What are the available configurations for the S200 series?
The S200 series is available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the breaking capacity of the S200 circuit breakers?
The breaking capacity is up to 6 kA at 230/400 V AC.
Can auxiliary contacts be mounted on the S200 circuit breakers?
Yes, bottom-fitting auxiliary contacts can be mounted to save 50% space.
What conductor sizes can be accommodated by the S200 terminals?
The terminals can accommodate conductors from 0.75 to 35 mm².
What standards do the S200 miniature circuit breakers comply with?
All S200 MCBs comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077.
What is the mechanical endurance of the S200 circuit breakers?
The mechanical endurance is rated for 20,000 operating cycles.
| Manufacturer Part Number | 2CDS252001R0404 |
|---|---|
| Packed Quantity | 5 |
| Barcode | 4016779466301 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 2 Pole |
| Amperage | 40A |
| Alternative Product SKU | S202-C40 |
