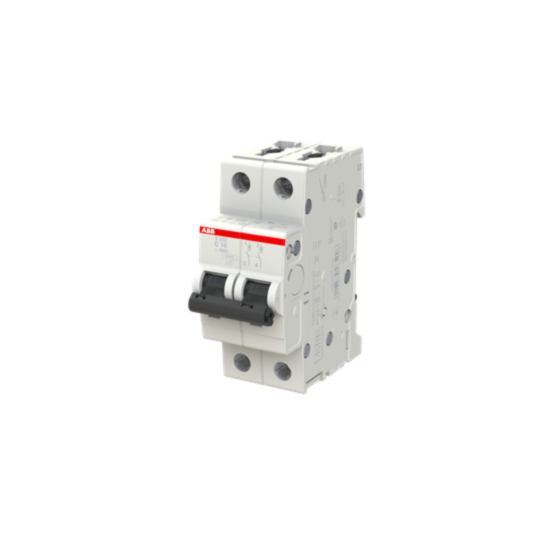

S202-C16 Miniature Circuit Breaker - 2P - C - 16 A
MPN: 2CDS252001R0164
Alt. SKU: S202-C16
Special Price
£33.48
£27.90
Regular Price
£60.88
Why Choose the S202-C16 [2CDS252001R0164]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Rated Current: 16 A.
- Number of Poles: 2P (two-pole) configuration.
- Rated Ultimate Short-Circuit Breaking Capacity: Up to 20 kA at 230 V AC, 10 kA at 400 V AC.
- Rated Service Short-Circuit Breaking Capacity: 15 kA at 230 V AC, 7.5 kA at 400 V AC.
- Terminal Type: Failsafe bi-directional cylinder-lift screw terminals.
- Connecting Capacity: Flexible 0.75–25 mm², rigid 0.75–35 mm² conductors; busbar 10 mm².
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Tightening Torque: 2.8 N·m.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the System pro M compact S200 miniature circuit breakers?
They provide overload and short circuit protection through thermal and electromechanical tripping mechanisms.
What are the available configurations for the S200 circuit breakers?
The S200 circuit breakers are available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the maximum breaking capacity of the S200 circuit breakers?
They have a breaking capacity of up to 6 kA at 230/400 V AC.
What is the rated current for the S200 circuit breakers?
The rated current can go up to 63 A, with a specific model rated at 16 A.
What is the connecting capacity for the terminals?
Flexible conductors can be connected from 0.75 to 25 mm², while rigid conductors can be connected from 0.75 to 35 mm²; busbar capacity is 10 mm².
What standards do the S200 circuit breakers comply with?
They comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
What is the electrical endurance of the S200 circuit breakers?
The electrical endurance is rated at 20,000 AC cycles.
| Manufacturer Part Number | 2CDS252001R0164 |
|---|---|
| Packed Quantity | 5 |
| Barcode | 4016779465908 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 2 Pole |
| Amperage | 16A |
| Alternative Product SKU | S202-C16 |
