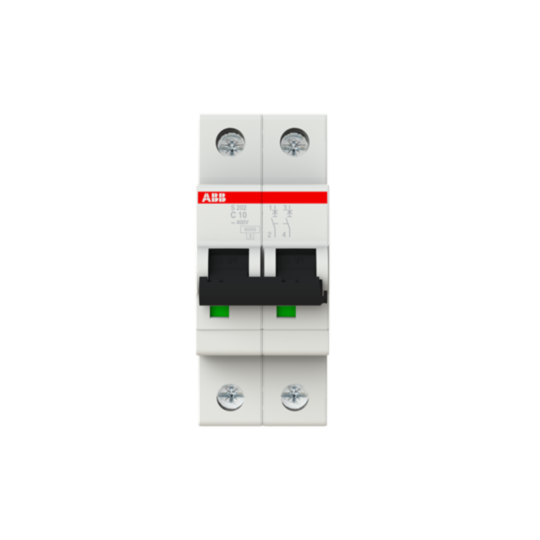

S202-C10 Miniature Circuit Breaker - 2P - C - 10 A
MPN: 2CDS252001R0104
Alt. SKU: S202-C10
Special Price
£34.82
£29.02
Regular Price
£63.31
Why Choose the S202-C10 [2CDS252001R0104]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Current limiting miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Rated Current: 10 A.
- Number of Poles: 2P (two poles).
- Rated Ultimate Breaking Capacity: Up to 20 kA at 230 V AC, 10 kA at 400 V AC, 10 kA at 440 V AC.
- Rated Service Breaking Capacity: 15 kA at 230 V AC, 7.5 kA at 400 V AC and 440 V AC.
- Terminal Type & Size: Screw terminals; connecting capacity 0.75 to 35 mm² (flexible and rigid conductors).
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Contact Position Indication: Red ON / Green OFF.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the System pro M compact S200 miniature circuit breakers?
They are current limiting miniature circuit breakers providing overload and short circuit protection through thermal and electromechanical tripping mechanisms.
What are the available configurations for the S200 MCBs?
Configurations include 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the rated current for the S200 MCBs?
The rated current can go up to 63A.
What is the cable capacity for connecting to the S200 MCBs?
The connecting capacity is from 0.75 to 35 mm² for both flexible and rigid conductors.
What is the breaking capacity of the S200 MCBs?
They have a rated ultimate breaking capacity of up to 20 kA at 230 V AC and 10 kA at 400 V AC and 440 V AC.
Can auxiliary contacts be mounted on the S200 MCBs?
Yes, bottom-fitting auxiliary contacts can be mounted to save 50% space.
What standards do the S200 MCBs comply with?
They comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS252001R0104 |
|---|---|
| Packed Quantity | 5 |
| Barcode | 4016779465700 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 2 Pole |
| Amperage | 10A |
| Alternative Product SKU | S202-C10 |
