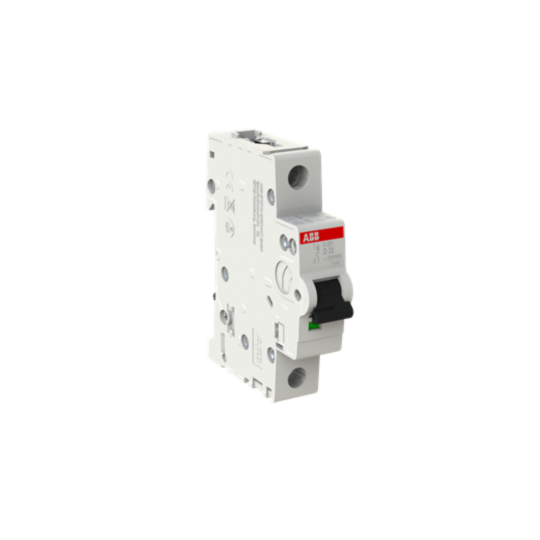

S201-D32 Miniature Circuit Breaker - 1P - D - 32 A
MPN: 2CDS251001R0321
Alt. SKU: S201D32
Special Price
£14.17
£11.81
Regular Price
£25.78
Why Choose the S201-D32 [2CDS251001R0321]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Current limiting miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Rated Current: Up to 32 A (model S201-D32).
- Voltage Rating: 230/400 V AC, max UL/CSA 480Y/277 V AC, 60 V DC.
- Breaking Capacity: Up to 20 kA (133 V AC), 10 kA at 230/400 V AC, UL interrupting rating up to 10 kA DC and 6 kA AC.
- Contact Configuration: Single pole (1P) with toggle actuator and red/green ON/OFF indication.
- Terminal Type and Capacity: Screw terminals compatible with busbar 10/10 mm², flexible and rigid conductors from 0.75 to 35 mm².
- Mechanical and Electrical Endurance: 20,000 mechanical cycles, 10,000 AC electrical cycles.
- Insulation and Dielectric Test: Rated for up to 2 kV dielectric test voltage (50/60 Hz, 1 min).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the System pro M compact S200 miniature circuit breakers?
They are current limiting miniature circuit breakers providing overload and short circuit protection through thermal and electromechanical tripping mechanisms.
What are the available configurations for the S200 circuit breakers?
The S200 circuit breakers are available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the maximum breaking capacity of the S200 circuit breakers?
The maximum breaking capacity is up to 20 kA at 133 V AC and 10 kA at 230/400 V AC.
What is the rated current for the S201-D32 model?
The rated current for the S201-D32 model is up to 32 A.
What is the terminal capacity for the S200 circuit breakers?
The screw terminals are compatible with busbar 10/10 mm² and can accommodate flexible and rigid conductors from 0.75 to 35 mm².
What is the mechanical and electrical endurance of the S200 circuit breakers?
The mechanical endurance is rated for 20,000 cycles, while the electrical endurance is rated for 10,000 AC cycles.
Are the S200 circuit breakers compliant with any standards?
Yes, they comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS251001R0321 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 4016779530064 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 32A |
| Alternative Product SKU | S201D32 |
