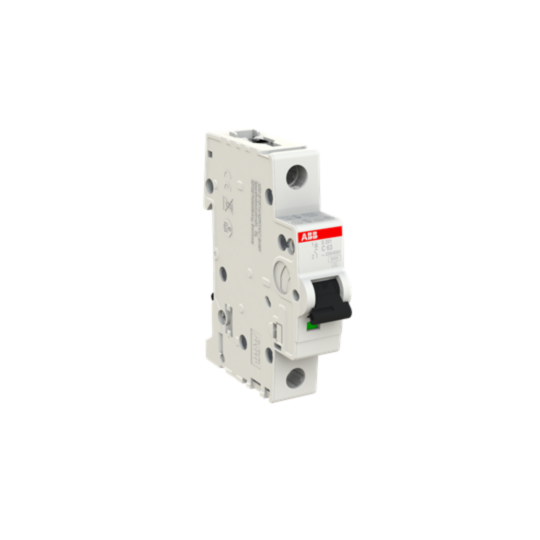

S201-C63 Miniature Circuit Breaker - 1P - C - 63 A
MPN: 2CDS251001R0634
Alt. SKU: S201-C63
Special Price
£14.12
£11.77
Regular Price
£25.68
Why Choose the S201-C63 [2CDS251001R0634]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Rated Current: Up to 63 A.
- Voltage Rating: Suitable for up to 400 V AC, max UL operating voltage 480Y/277 V AC, 60 V DC.
- Breaking Capacity: Up to 20 kA (133 V AC), 10 kA (230/400 V AC), 10 kA (24 V DC).
- Contact Configuration: 1 pole (1P) with red ON / green OFF indication.
- Terminal Type and Capacity: Screw terminals; supports flexible and rigid conductors from 0.75 to 35 mm².
- Mechanical Endurance: 20,000 cycles; Electrical Endurance: 10,000 AC cycles.
- Installation Size: 1 module width according to DIN 43880.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum rated current for the S200 miniature circuit breakers?
The maximum rated current for the S200 miniature circuit breakers is up to 63 A.
What types of tripping mechanisms are used in the S200 circuit breakers?
The S200 circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short circuit protection.
What is the breaking capacity of the S200 circuit breakers?
The breaking capacity is up to 10 kA at 230/400 V AC and up to 20 kA at 133 V AC.
Can auxiliary contacts be mounted on the S200 circuit breakers?
Yes, a bottom-fitting auxiliary contact can be mounted on the S200 to save 50% space.
What conductor sizes are supported by the terminal type of the S200?
The screw terminals support flexible and rigid conductors from 0.75 to 35 mm².
What are the installation size specifications for the S200 circuit breakers?
The installation size is 1 module width according to DIN 43880.
What standards do the S200 circuit breakers comply with?
All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS251001R0634 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 4016779551014 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 63A |
| Alternative Product SKU | S201-C63 |
