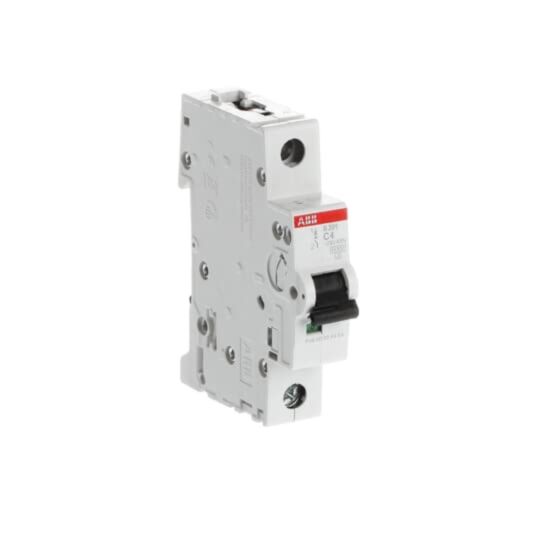

S201-C4 Miniature Circuit Breaker - 1P - C - 4 A
MPN: 2CDS251001R0044
Alt. SKU: S201C4
Special Price
£13.96
£11.63
Regular Price
£25.37
Why Choose the S201-C4 [2CDS251001R0044]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Voltage Ratings: Up to 480Y/277 V AC (UL/CSA), 230/400 V AC standard operation.
- Current Rating: Up to 63 A; this model rated 4 A.
- Contact Configuration: Single pole (1P) with red ON / green OFF indication.
- Breaking Capacity: Up to 20 kA (133 V AC), 10 kA (230/400 V AC), 10 kA DC ratings.
- Terminal Type & Size: Failsafe bi-directional screw terminals supporting 0.75–35 mm² flexible and rigid conductors.
- Impulse Withstand Voltage: Dielectric test voltage 2 kV at 50/60 Hz for 1 minute.
- Mechanical & Electrical Endurance: 20,000 cycles each.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the main functions of the System pro M compact S200 miniature circuit breakers?
The S200 MCBs provide overload protection through a delayed thermal tripping mechanism and short circuit protection via an electromechanical tripping mechanism.
What are the available configurations for the S200 MCBs?
The S200 MCBs are available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the maximum breaking capacity of the S200 MCBs?
The maximum breaking capacity is up to 6 kA at 230/400 V AC.
What is the rated current for the S200 MCBs?
The rated current for the S200 MCBs goes up to 63 A, with this specific model rated at 4 A.
What types of conductors can be used with the S200 MCBs?
The S200 MCBs support failsafe bi-directional screw terminals for 0.75–35 mm² flexible and rigid conductors.
Are the S200 MCBs compliant with any standards?
Yes, all S200 MCBs comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
Can auxiliary contacts be mounted on the S200 MCBs?
Yes, bottom-fitting auxiliary contacts can be mounted on the S200 to save 50% space.
| Manufacturer Part Number | 2CDS251001R0044 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 4016779523349 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 4A |
| Alternative Product SKU | S201C4 |
