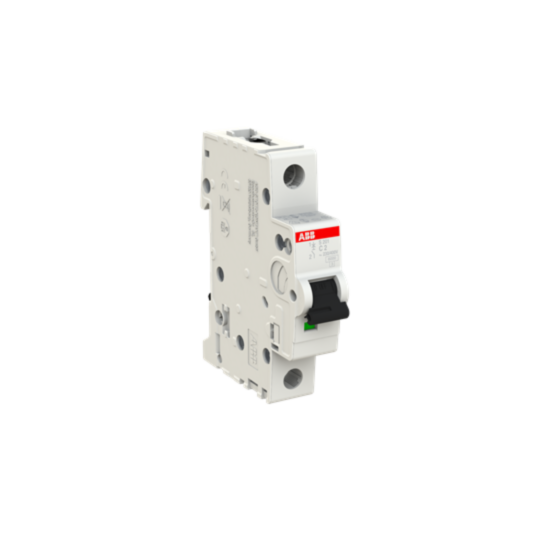

S201-C2 Miniature Circuit Breaker - 1P - C - 2 A
MPN: 2CDS251001R0024
Alt. SKU: S201C2
Special Price
£14.23
£11.86
Regular Price
£25.88
Why Choose the S201-C2 [2CDS251001R0024]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Current limiting miniature circuit breaker with thermal and electromechanical tripping mechanisms.
- Voltage Ratings: Up to 480Y/277 V AC, 60 V DC maximum operating voltage UL/CSA.
- Current Rating: Rated current up to 63 A; example model S201-C2 rated at 2 A.
- Contact Configuration: Single pole (1P) with red ON / green OFF indication.
- Breaking Capacity: Up to 20 kA ultimate short-circuit breaking capacity (varies by voltage).
- Terminal Type and Size Range: Failsafe bi-directional cylinder-lift screw terminals; flexible 0.75–25 mm², rigid 0.75–35 mm².
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Actuator Type: Toggle with I/O marking, black insulation, sealable.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the tripping mechanisms used in the S200 miniature circuit breakers?
The S200 miniature circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short circuit protection.
What is the maximum breaking capacity of the S200 series?
The S200 series has a breaking capacity of up to 20 kA ultimate short-circuit breaking capacity, which varies by voltage.
What are the available configurations for the S200 circuit breakers?
The S200 circuit breakers are available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the rated current for the S200 miniature circuit breakers?
The rated current for the S200 series can go up to 63 A, with specific models like the S201-C2 rated at 2 A.
Can auxiliary contacts be mounted on the S200 circuit breakers?
Yes, a bottom-fitting auxiliary contact can be mounted on the S200, allowing for a space saving of 50%.
What are the terminal types and size ranges for the S200 series?
The S200 series features failsafe bi-directional cylinder-lift screw terminals, accommodating flexible cables from 0.75–25 mm² and rigid cables from 0.75–35 mm².
What standards do the S200 miniature circuit breakers comply with?
All S200 MCBs comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS251001R0024 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 4016779523325 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 2A |
| Alternative Product SKU | S201C2 |
