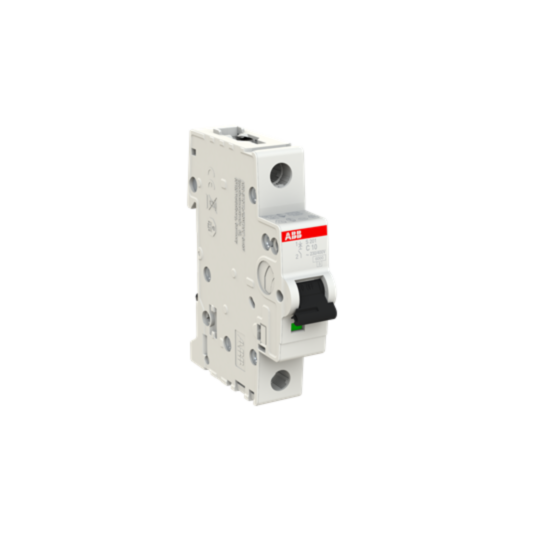

S201-C10 Miniature Circuit Breaker - 1P - C - 10 A
MPN: 2CDS251001R0104
Alt. SKU: S201-C10
Special Price
£13.54
£11.28
Regular Price
£24.61
Why Choose the S201-C10 [2CDS251001R0104]
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specification
- Function: Current limiting miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Rated Voltage: Up to 480Y/277 V AC and 60 V DC.
- Rated Current: 10 A (S201-C10 model).
- Contact Configuration: Single pole (1P).
- Breaking Capacity: 10 kA at 230/400 V AC; 20 kA at 133 V AC; 10 kA at 60 V DC.
- Terminal Type and Capacity: Screw terminals supporting 0.75–35 mm² flexible and rigid conductors; busbar up to 10/10 mm².
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Actuator: Toggle type, sealable, with red ON/green OFF contact position indication.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the tripping mechanisms used in the S200 miniature circuit breakers?
The S200 miniature circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short circuit protection.
What is the maximum breaking capacity of the S200 circuit breakers?
The S200 circuit breakers have a maximum breaking capacity of up to 6 kA at 230/400 V AC.
What types of configurations are available for the S200 circuit breakers?
The S200 circuit breakers are available in various configurations including 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the rated current range for the S200 circuit breakers?
The rated current for the S200 circuit breakers goes up to 63A.
Can auxiliary contacts be mounted on the S200 circuit breakers?
Yes, bottom-fitting auxiliary contacts can be mounted on the S200 circuit breakers, allowing for a space saving of 50%.
What conductor sizes are supported by the S200 circuit breakers?
The S200 circuit breakers support screw terminals for conductor sizes ranging from 0.75 to 35 mm² for both flexible and rigid conductors, and busbar up to 10/10 mm².
What standards do the S200 circuit breakers comply with?
All S200 circuit breakers comply with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS251001R0104 |
|---|---|
| Packed Quantity | 10 |
| Barcode | 4016779464208 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 10A |
| Alternative Product SKU | S201-C10 |
