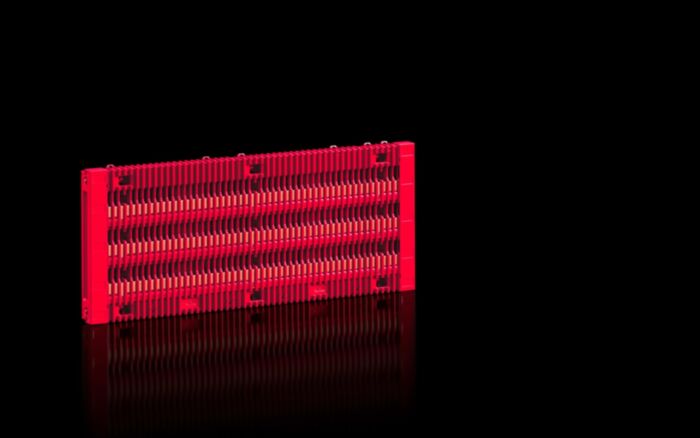

RX9360.064 Rittal RiLineX board 550 A, 3-pole, 60 mm, including busbars 30x5 mm
MPN: RX9360.064
Alt. SKU: 9360064
Special Price
£182.46
£152.05
Regular Price
£214.66
Why Choose the Rittal RX 9360.064 RiLineX Board 550 A 3-pole?
The Rittal RX 9360.064 RiLineX board is a 550 A, 3-pole complete power distribution board with integrated 30 x 5 mm copper busbars, engineered for 600 mm wide enclosures (board length 505 mm). It delivers end to end, touch safe busbar distribution with contact hazard protection up to IP 2XB, upgradable to IP 4X, and tested short circuit resistance up to 65 kA. Designed for systems up to 1000 V AC and 1500 V DC and approved to IEC and UL standards, it gives panel builders a compact, ready made platform that reduces wiring effort, standardises layouts and supports safe, future proof power distribution.
Technical Specifications
- Manufacturer: Rittal
- System: RiLineX complete board with integrated busbars
- Article number: RX 9360.064
- SKU: 9360064
- Product type: RiLineX board for power distribution
- Rated current: 550 A
- Number of poles: 3 pole
- Busbar dimensions: 30 mm x 5 mm (electrolytic copper, E Cu)
- Centre to centre busbar spacing: 60 mm
- Busbar height: 30 mm
- Board length / width: 505 mm (for 600 mm wide enclosures)
- Board height: 246 mm
- Board depth: 49 mm
- Protection category: Full contact hazard protection up to IP 2XB, upgradable to IP 4X with suitable accessories
- Rated voltage: up to 1000 V AC and 1500 V DC
- Tested short circuit strength: up to 65 kA
- Rated short time withstand current (Icw): 52.5 kA (typical, 1 s class, system dependent)
- Mounting orientation: Horizontal, vertical or overhead (above head height)
- Cable routing: Cable routing possible in the rear section of the board
- Material, carrier: Polyamide PA 6, fire behaviour to UL 94
- Material, busbars: Electrolytic copper (E Cu)
- Surface finish, busbars: bare or treated copper (as per RiLineX specification)
- Colour: RAL 35745 and RAL 9005
- Net weight: approximately 11 kg
- Customs tariff number: 85369010
- Country of origin: Germany
- Standards: IEC 61439 1 and IEC 61439 2, UL 508
- Approvals: UL and cUL listed
- EAN / GTIN 13: 4028177997363
- Supply includes: Preconfigured 3 pole RiLineX complete board including busbars 30 x 5 mm, 60 mm spacing
Applications
- Main and sub distribution boards up to 550 A in industrial and commercial installations.
- Power distribution in Rittal TS, VX and similar 600 mm wide enclosures using the RiLineX system.
- Machine and process control panels requiring a compact, touch safe 60 mm busbar system.
- Standardised switchboard designs where pre engineered RiLineX boards reduce engineering and assembly time.
- Export panels that must comply with IEC 61439 and UL requirements using a single approved busbar technology.
Trusted By Panel Builders
"For 600 mm wide enclosures, the RX 9360.064 gives us a complete 550 A RiLineX board out of the box. The integrated busbars, touch safe design and digital data make layout and documentation much quicker." Senior Panel Builder, UK
Frequently Asked Questions
What is the Rittal RX 9360.064 RiLineX board used for?
The RX 9360.064 is a 550 A, 3 pole RiLineX complete board with integrated copper busbars, designed for 600 mm wide enclosures. It forms the main power distribution platform inside the panel for feeding outgoing protective and switching devices.
What are the main electrical ratings of this board?
The board is rated at 550 A and suitable for systems up to 1000 V AC and 1500 V DC. It has tested short circuit resistance up to 65 kA, with a typical short time withstand rating of around 52.5 kA when used with coordinated protection as defined in the RiLineX documentation.
What are the busbar dimensions and spacing on RX 9360.064?
The integrated busbars are 30 mm high by 5 mm thick, made from E Cu copper, with a centre to centre spacing of 60 mm. These dimensions are part of the RiLineX 60 mm system and match the full range of adapters and connection components.
Which enclosure size is this RiLineX board designed for?
With a length of 505 mm, the RX 9360.064 is designed specifically for 600 mm wide enclosures. This leaves space for side mounted cable ducts and accessories while providing full width power distribution inside the panel.
How can the board be mounted inside the enclosure?
The RiLineX board can be mounted horizontally, vertically or overhead (above head height). Cable routing can be run in the rear section of the board, supporting neat, compact layouts and separation of high current conductors from control wiring.
What level of protection does the RX 9360.064 provide?
As supplied, the board offers full contact hazard protection up to IP 2XB. With suitable covers and enclosure accessories, the overall system can be upgraded to IP 4X, supporting safe operation and maintenance in enclosed switchboards.
Is the RX 9360.064 suitable for IEC and UL projects?
Yes. The board is tested and approved as part of the RiLineX system in accordance with IEC 61439 1 and IEC 61439 2 and UL 508, and it is UL and cUL listed. This allows it to be used in both IEC based assemblies and UL regulated export panels.
What materials are used in the RiLineX board?
The carrier parts are made from polyamide PA 6 with fire behaviour in line with UL 94, and the busbars are electrolytic copper. This combination provides robust mechanical strength, good electrical performance and compliance with the relevant standards.
| Manufacturer Part Number | RX9360.064 |
|---|---|
| Alternative Product SKU | 9360064 |
| Manufacturer | Rittal |
| Barcode | 4028177997363 |
| HS Code | 85369010 |
| Number of Poles | 3 Pole |
| Busbar distance | 60mm |
| Busbar height | 30mm |
| Busbar thickness | 5mm |
| Rated current | 550A |
| Short-circuit breaking capacity (Icw) | 52.5A |
| Material | Copper |
| Range | RX |
| Height | 246mm |
| Width | 505mm |
| Depth | 49mm |
| Packed Quantity | 1 |
