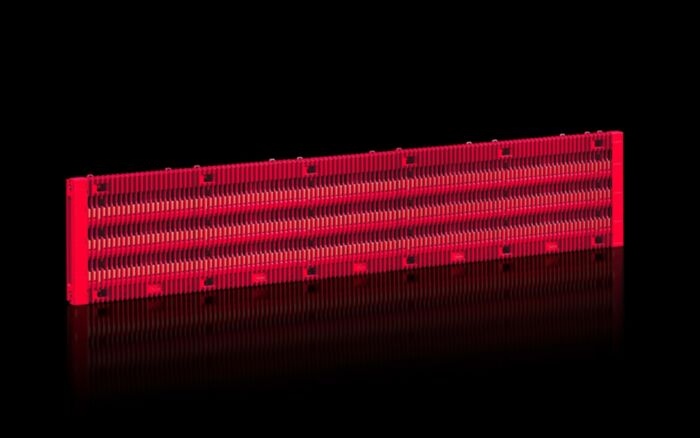

RX9360.028 Rittal RiLineX board 800 A, 3-pole, 60 mm, including busbars 30x10 mm
MPN: RX9360.028
Alt. SKU: 9360028
Special Price
£548.89
£457.41
Regular Price
£645.76
Why Choose the Rittal RX 9360.028 RiLineX Board 800 A 3-pole?
The Rittal RX 9360.028 RiLineX board is an 800 A, 3-pole complete power distribution board with integrated 30 x 10 mm copper busbars, engineered specifically for 1200 mm wide enclosures (board width 1105 mm). It delivers end-to-end, touch-safe busbar distribution with contact hazard protection up to IP 2XB, upgradable to IP 4X, and tested short-circuit resistance up to 65 kA. Designed for systems up to 1000 V AC and 1500 V DC with IEC and UL approvals, it provides a robust, ready-made platform that helps panel builders and OEMs standardise layouts, reduce assembly time and create future-proof main and sub-distribution systems in higher-width switchboards.
Technical Specifications
- Manufacturer: Rittal
- System: RiLineX complete board with integrated busbars
- Article number: RX 9360.028
- SKU: 9360028
- Product type: RiLineX board for power distribution
- Rated current: 800 A
- Number of poles: 3-pole
- Busbar dimensions: 30 mm x 10 mm (electrolytic copper, E-Cu)
- Centre-to-centre busbar spacing: 60 mm
- Busbar height: 30 mm
- Board width: 1105 mm (for 1200 mm wide enclosures)
- Board height: 246 mm
- Board depth: 49 mm
- Protection category: Contact hazard protection up to IP 2XB, upgradable to IP 4X with suitable accessories
- Rated voltage: up to 1000 V AC and 1500 V DC
- Short-circuit resistance: tested up to 65 kA
- Mounting orientation: Horizontal, vertical or overhead (above head height)
- Cable routing: Cable routing possible in the rear section of the board
- Material (board carrier): Polyamide PA 6, fire behaviour according to UL 94
- Material (busbars): Electrolytic copper (E-Cu)
- Colour: RAL 35745 and RAL 9005
- Net weight: 14.0 kg (approximate)
- Customs tariff number: 85369010
- Country of origin: Germany
- Standards: IEC 61439-1 / IEC 61439-2, UL 508 (as part of RiLineX system)
- Approvals: UL and cUL listed
- EAN / GTIN-13: 4028177997394
- Supply includes: Preconfigured 3-pole RiLineX board including busbars 30 x 10 mm, 60 mm spacing
Applications
- Main and sub-distribution boards up to 800 A in industrial and commercial installations.
- Power distribution in Rittal TS / VX and similar 1200 mm wide enclosures using the RiLineX system.
- Machine and process control panels requiring a compact, high-current, touch-safe busbar system.
- Multi-panel switchboards where standardised RiLineX boards simplify design, documentation and future expansion.
- Export panels that must comply with IEC 61439 and UL requirements using a single approved busbar technology.
Trusted By Panel Builders
"The RX 9360.028 gives us an 800 A RiLineX platform sized perfectly for 1200 mm enclosures. With the integrated busbars and touch-safe design, it makes high-current distribution fast to build and easy to standardise." Senior Panel Builder, UK
Frequently Asked Questions
What is the Rittal RX 9360.028 RiLineX board used for?
The RX 9360.028 is an 800 A, 3-pole RiLineX complete board with integrated busbars, designed for 1200 mm wide enclosures. It provides the main busbar platform for distributing power to outgoing devices such as circuit-breakers, switch-disconnectors and fuse-switch units.
How does RX 9360.028 differ from other RiLineX boards?
Compared with 800 A boards for 1000 mm enclosures, the RX 9360.028 has a width of 1105 mm, making it suitable for 1200 mm wide enclosures. It still uses 30 x 10 mm copper busbars with 60 mm spacing and offers the same tested short-circuit performance up to 65 kA.
What are the main electrical ratings of this board?
The board is rated at 800 A and suitable for systems up to 1000 V AC and 1500 V DC, with short-circuit resistance tested up to 65 kA when used with correctly coordinated upstream protective devices.
What are the busbar dimensions and spacing?
The integrated busbars are 30 mm high by 10 mm thick, made from E-Cu copper, with a centre-to-centre spacing of 60 mm. These dimensions match the RiLineX adapter and connection components used for outgoing feeders and devices.
Which enclosure size is the RX 9360.028 designed for?
With a board width of 1105 mm, the RX 9360.028 is designed for 1200 mm wide enclosures, leaving side space for cable ducts, connection kits and accessories.
How can this RiLineX board be mounted?
The board can be mounted horizontally, vertically or overhead. Integrated options for cable routing in the rear section help keep high-current conductors compact and segregated from control wiring.
What level of protection does the board offer?
As part of a RiLineX assembly in a suitable enclosure, the RX 9360.028 provides contact hazard protection up to IP 2XB and can be upgraded to IP 4X using the appropriate covers and accessories, supporting safe operation and maintenance in enclosed panels.
Is the RX 9360.028 suitable for IEC and UL applications?
Yes. The board forms part of the RiLineX system, which is tested to IEC 61439-1 and IEC 61439-2 and UL 508 and is UL and cUL listed, making it suitable for both IEC-based assemblies and UL-regulated export switchboards.
| Manufacturer Part Number | RX9360.028 |
|---|---|
| Alternative Product SKU | 9360028 |
| Manufacturer | Rittal |
| Barcode | 4028177997394 |
| HS Code | 85369010 |
| Number of Poles | 3 Pole |
| Busbar distance | 60mm |
| Busbar height | 30mm |
| Busbar thickness | 10mm |
| Rated current | 800A |
| Short-circuit breaking capacity (Icw) | 65A |
| Material | Copper |
| Range | RX |
| Height | 246mm |
| Width | 1105mm |
| Depth | 49mm |
| Packed Quantity | 1 |
