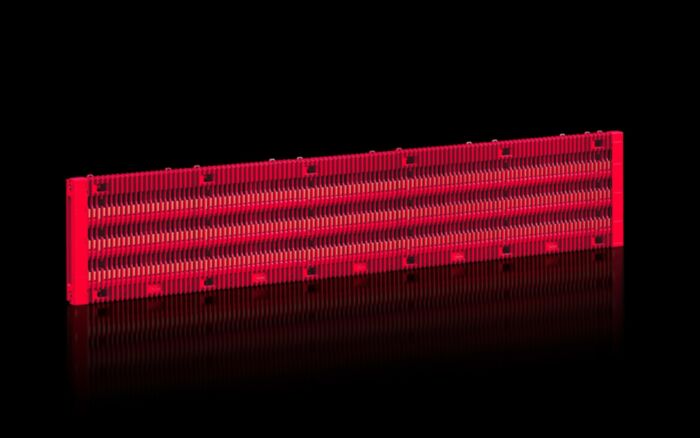

RX9360.024 Rittal RiLineX board 550 A, 3-pole, 60 mm, including busbars 30x5 mm
MPN: RX9360.024
Alt. SKU: 9360024
Special Price
£386.96
£322.47
Regular Price
£455.26
Why Choose the Rittal RX 9360.024 RiLineX Board 800 A 4-pole?
The Rittal RX 9360.024 RiLineX board is an 800 A, 4-pole complete power distribution board with integrated 30 x 10 mm copper busbars, engineered for 1000 mm wide enclosures. It extends the proven RiLineX system to four conductors (L1, L2, L3, N), giving panel builders a compact, touch-safe solution for three-phase plus neutral distribution with contact hazard protection up to IP 2XB (upgradable to IP 3X) and tested short-circuit strength up to 65 kA. Designed for systems up to 1000 V AC and 1500 V DC and tested to IEC and UL standards, it offers a ready-made high-current platform that reduces build time and supports standardised, future-proof switchboard designs.
Technical Specifications
- Manufacturer: Rittal
- System: RiLineX complete board with integrated busbars
- Article number: RX 9360.024
- SKU: 9360024
- Product type: RiLineX power distribution board
- Rated current: 800 A
- Number of poles: 4-pole (L1, L2, L3, N)
- Busbar dimensions: 30 mm x 10 mm (E-Cu copper)
- Centre-to-centre busbar spacing: 60 mm
- Busbar height: 30 mm
- Board width: 905 mm (for 1000 mm wide enclosures)
- Board height: 246 mm
- Board depth: 49 mm
- Protection category: Contact hazard protection up to IP 2XB, upgradable to IP 3X with suitable accessories
- Rated voltage: up to 1000 V AC and 1500 V DC (system dependent)
- Short-circuit resistance: tested up to 65 kA when used with coordinated protective devices
- Mounting orientation: Horizontal, vertical or overhead (above head height)
- Cable routing: Cable routing possible in the rear section of the board for compact layouts
- Material (board carrier): Polyamide PA 6, with fire behaviour according to UL 94
- Material (busbars): Electrolytic copper (E-Cu)
- Colour: RAL 35745 and RAL 9005
- Customs tariff number: 85369010
- Country of origin: Germany
- Standards: IEC 61439-1 / IEC 61439-2, UL 508 (as part of RiLineX system)
- Approvals: UL and cUL listed
- Supply includes: Preconfigured 4-pole RiLineX board with 30 x 10 mm busbars and fixing hardware
Applications
- Main and sub-distribution boards up to 800 A with 3-phase plus neutral in industrial and commercial installations.
- Power distribution in Rittal TS / VX and similar 1000 mm wide enclosures using the RiLineX busbar system.
- Machine, process and building services switchboards requiring a compact, high-current 4-pole busbar platform.
- Multi-panel line-ups where standardised RiLineX boards simplify design, documentation and later expansion.
- Export panels that must comply with both IEC 61439 and UL requirements using a single busbar technology.
Trusted By Panel Builders
"The RX 9360.024 gives us a ready-made 4-pole, 800 A RiLineX board for 1000 mm enclosures. It saves engineering time and keeps our layouts consistent across projects." Senior Panel Builder, UK
Frequently Asked Questions
What is the Rittal RX 9360.024 RiLineX board used for?
The RX 9360.024 is an 800 A, 4-pole RiLineX complete board designed for 1000 mm wide enclosures. It provides the main busbar platform for distributing power across three phases plus neutral to outgoing devices such as circuit-breakers and switch-disconnectors.
How does the 4-pole version differ from the 3-pole RiLineX boards?
While 3-pole boards provide busbars for L1, L2 and L3, the RX 9360.024 adds a fourth bar for the neutral conductor. This makes it ideal for systems where a full three-phase plus neutral distribution is required on a single busbar platform.
What are the main electrical ratings of this board?
The board is rated at 800 A and suitable for systems up to 1000 V AC and 1500 V DC, with short-circuit resistance tested up to 65 kA when coordinated with the appropriate upstream protection as defined in RiLineX documentation.
What are the busbar dimensions and spacing?
The integrated busbars are 30 mm high by 10 mm thick and made from E-Cu copper, with a 60 mm centre-to-centre spacing. These dimensions match the RiLineX accessory system for adapters, feeders and protection devices.
Which enclosure size is the RX 9360.024 designed for?
With a board width of 905 mm, the RX 9360.024 is designed specifically for 1000 mm wide enclosures, leaving space for side-mounted wiring ducts and accessories.
How can this RiLineX board be mounted?
The board is suitable for mounting horizontally, vertically or overhead. Cables can be routed in the rear section of the board, which helps to keep high-current conductors compact and separate from control wiring.
What protection level does the RX 9360.024 offer?
As part of a RiLineX assembly in a suitable enclosure, the board provides contact hazard protection up to IP 2XB. With additional covers and enclosure accessories it can be integrated into systems with an overall rating up to IP 3X, in line with Rittal guidelines.
Is the RX 9360.024 suitable for IEC and UL applications?
Yes. The RiLineX board forms part of a system tested in accordance with IEC 61439-1 and IEC 61439-2 and UL 508, and is UL and cUL listed. It is suitable for IEC-based assemblies and UL-regulated export switchboards.
| Manufacturer Part Number | RX9360.024 |
|---|---|
| Alternative Product SKU | 9360024 |
| Manufacturer | Rittal |
| Barcode | 4028177997400 |
| HS Code | 85369010 |
| Number of Poles | 3 Pole |
| Busbar distance | 60mm |
| Busbar height | 30mm |
| Busbar thickness | 5mm |
| Rated current | 550A |
| Short-circuit breaking capacity (Icw) | 52.5A |
| Material | Copper |
| Range | RX |
| Height | 246mm |
| Width | 1105mm |
| Depth | 49mm |
| Packed Quantity | 1 |
