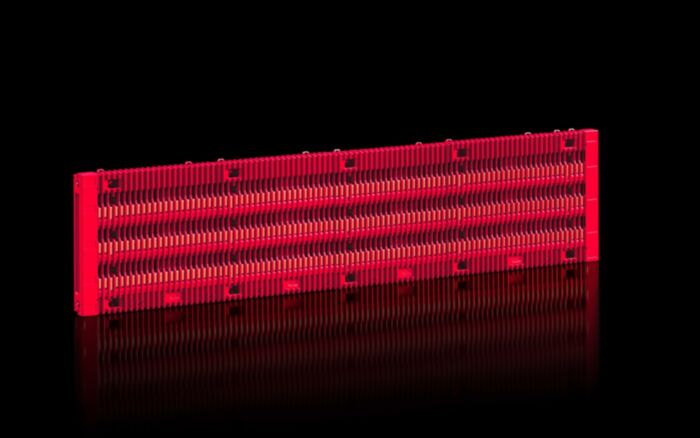

RX9360.008 Rittal RiLineX board 800 A, 3-pole, 60 mm, including busbars 30x10 mm
MPN: RX9360.008
Alt. SKU: 9360008
Special Price
£442.43
£368.69
Regular Price
£520.50
Why Choose the Rittal RX 9360.008 RiLineX Board 800 A 3-pole?
The Rittal RX 9360.008 RiLineX board is an 800 A, 3-pole complete power distribution board with integrated 30 x 10 mm copper busbars, engineered for 1000 mm wide enclosures. It provides end-to-end, touch-safe busbar distribution with contact hazard protection up to IP 2XB (upgradable to IP 3X), tested short-circuit resistance up to 65 kA, and suitability for systems up to 1000 V AC and 1500 V DC. Supplied as a pre-assembled board with fully digital product data and IEC / UL approvals, it helps panel builders and OEMs standardise layouts, cut assembly time and deliver robust, future-proof main and sub-distribution solutions.
Technical Specifications
- Manufacturer: Rittal
- System: RiLineX complete board with integrated busbars
- Article number: RX 9360.008
- SKU: 9360008
- Product type: RiLineX board for power distribution
- Rated current: 800 A
- Number of poles: 3-pole
- Busbar dimensions: 30 mm x 10 mm (electrolytic copper, E-Cu)
- Centre-to-centre busbar spacing: 60 mm
- Busbar height: 30 mm
- Board width: 905 mm (for 1000 mm wide enclosures)
- Board height: 246 mm
- Board depth: 49 mm
- Protection category: Contact hazard protection up to IP 2XB, upgradable to IP 3X (with appropriate accessories)
- Rated voltage: up to 1000 V AC and 1500 V DC
- Short-circuit resistance: tested up to 65 kA
- Mounting orientation: Horizontal, vertical or overhead (above head height)
- Cable routing: Cable routing possible in the rear section of the board
- Material (board carrier): Polyamide PA 6, fire behaviour according to UL 94
- Material (busbars): E-Cu copper
- Colour: RAL 35745 and RAL 9005
- Customs tariff number: 85369010
- Country of origin: Germany
- Standards: IEC 61439-1 / IEC 61439-2, UL 508
- Approvals: UL and cUL listed
- EAN: 4028177997417
- Supply includes: Preconfigured 3-pole RiLineX board with integral busbars 30 x 10 mm
Applications
- Main and sub-distribution boards up to 800 A in industrial and commercial installations.
- Power distribution in Rittal TS / VX and similar 1000 mm wide enclosures using the RiLineX system.
- Machine and process control panels requiring compact, high-current, touch-safe busbar systems.
- Multi-panel switchboards where tested, standardised busbar platforms simplify design and extension.
- Export panels that must comply with IEC 61439 and UL requirements using a single, approved busbar technology.
Trusted By Panel Builders
"For 800 A main distribution in 1000 mm enclosures, the RX 9360.008 gives us a ready-made, touch-safe RiLineX platform. The pre-assembled board and digital data save time on both engineering and build." Senior Panel Builder, UK
Frequently Asked Questions
What is the Rittal RX 9360.008 RiLineX board used for?
The RX 9360.008 is an 800 A, 3-pole complete RiLineX board with integrated busbars for 1000 mm wide enclosures. It provides the main power distribution platform inside the switchboard, feeding outgoing protective and switching devices.
What are the main electrical ratings of this board?
The board is rated for 800 A and is suitable for systems up to 1000 V AC and 1500 V DC. It has tested short-circuit resistance up to 65 kA, allowing it to be used in high fault-level installations when coordinated with the correct upstream protection.
What are the busbar dimensions and spacing on RX 9360.008?
The integrated busbars are 30 mm high by 10 mm thick, made from electrolytic copper (E-Cu), with a centre-to-centre spacing of 60 mm between phases. This matches the RiLineX accessory system for adapters, connection modules and protection devices.
Which enclosure size is this board designed for?
The RX 9360.008 has a width of 905 mm and is designed specifically for installation in 1000 mm wide enclosures, leaving side clearance for wiring ducts, connection kits and accessories inside the panel.
How can the board be mounted in the enclosure?
The RiLineX board can be mounted horizontally, vertically or overhead. Cable routing can be run in the rear section of the board, helping to keep high-current conductors compact and segregated from control wiring.
What degree of protection does the RX 9360.008 provide?
As supplied, the board offers contact hazard protection up to IP 2XB. With suitable covers and enclosure components, the system can be upgraded to IP 3X, supporting safe operation and maintenance in enclosed panels.
Is the RX 9360.008 suitable for IEC and UL projects?
Yes. The board is tested and approved in line with IEC 61439-1 and IEC 61439-2 and UL 508, and is UL and cUL listed. This makes it suitable for both European IEC assemblies and UL-regulated export switchboards.
What standards and materials does the system use?
The carrier parts are made from polyamide PA 6 with fire behaviour according to UL 94, and the busbars are E-Cu copper. The system is part of the RiLineX platform, designed and tested to IEC 61439 and UL 508.
| Manufacturer Part Number | RX9360.008 |
|---|---|
| Alternative Product SKU | 9360008 |
| Manufacturer | Rittal |
| Barcode | 4028177997417 |
| HS Code | 85369010 |
| Number of Poles | 3 Pole |
| Busbar distance | 60mm |
| Busbar height | 30mm |
| Busbar thickness | 10mm |
| Rated current | 800A |
| Short-circuit breaking capacity (Icw) | 65A |
| Material | Copper |
| Range | RX |
| Height | 246mm |
| Width | 905mm |
| Depth | 49mm |
| Packed Quantity | 1 |
