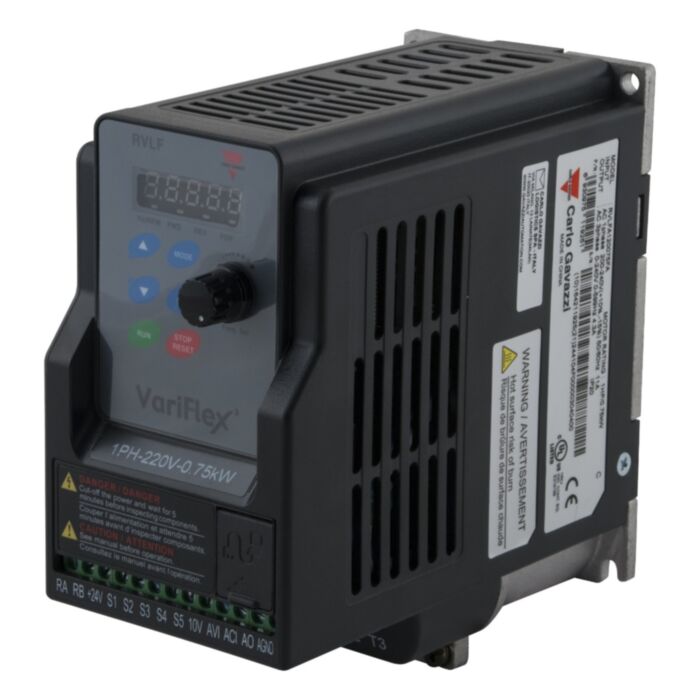

RVLFA120040FA - AC DRIVE 230V 1PH 0.40KW SIZE1

Why Choose the Carlo Gavazzi RVLFA120040FA Frequency Drive?

The Carlo Gavazzi RVLFA120040FA is a compact single-phase frequency drive designed for controlling induction motors in industrial automation and machine control applications. As part of the Carlo Gavazzi RVLF series, it provides reliable variable speed control in a panel-mounted format for low-power motor installations.

This drive combines practical motor control functionality with built-in communication and protection features. With Modbus RTU support, an integrated EMC filter and IP20 construction, the RVLFA120040FA is well suited for panel builders, machine builders and maintenance engineers requiring straightforward drive integration.

With an output power of 0.4 kW, a 2.6 A nominal output current and a single-phase 200-240 V AC operating voltage, the RVLFA120040FA is ideal for small pumps, fans, conveyors and compact machinery requiring efficient speed control.

Key Advantages

• Compact single-phase frequency drive for induction motors.
• 0.4 kW output power suitable for small industrial motors.
• 200-240 V AC operating voltage for single-phase supply systems.
• 2.6 A nominal output current.
• Integrated EMC filter for reduced electrical interference.
• Modbus RTU communication for automation system integration.
• Panel-mounted IP20 design for control cabinet installation.

Key Features

• Carlo Gavazzi RVLF frequency drive series.
• 0.4 kW motor power rating.
• 2.6 A nominal output current.
• Single-phase 200-240 V AC operating voltage.
• Mains voltage range of 170-264 V AC.
• Maximum output frequency up to 600 Hz.
• Integrated EMC filter.
• Supports Modbus RTU communication.
• 5 digital inputs and 2 analogue inputs.
• 1 digital output and 1 analogue output.

Technical Specifications

• Manufacturer: Carlo Gavazzi
• Series: RVLF Series
• Model: RVLFA120040FA
• Product type: Frequency drive / AC variable speed drive
• Motor type: Induction motors
• Output power: 0.4 kW
• Horsepower rating: 0.5 hp
• Nominal output current: 2.6 A
• Operating voltage: 200-240 V AC
• Mains voltage range: 170-264 V AC
• Input phase: 1-phase
• Maximum output frequency: 600 Hz
• Output frequency: 0.01-599 Hz
• Protection rating: IP20
• Mounting type: Panel mount
• Frame size: A
• Communication: Modbus RTU
• EMC filter: Built-in

Compact Speed Control for Industrial Motors

Frequency drives such as the Carlo Gavazzi RVLFA120040FA regulate motor speed by adjusting the output frequency and voltage supplied to the motor. This allows machinery to run more efficiently, improves process control and reduces mechanical stress on driven equipment.

The RVLF series is designed for compact automation installations where reliable speed control, communication capability and simple panel mounting are required. Its built-in EMC filter and Modbus RTU support make it a practical choice for modern industrial control systems.

Typical Applications

• Small industrial pumps and pumping systems.
• Fans and ventilation equipment.
• Compact conveyors and material handling systems.
• Packaging and production machinery.
• Machine building and OEM automation systems.
• Panel-mounted motor control systems.
• General-purpose low-power induction motor control.

Trusted by Industrial Automation Professionals

Carlo Gavazzi frequency drives are used by panel builders, machine builders and maintenance engineers to provide reliable motor speed control, efficient automation integration and dependable performance in industrial applications.
