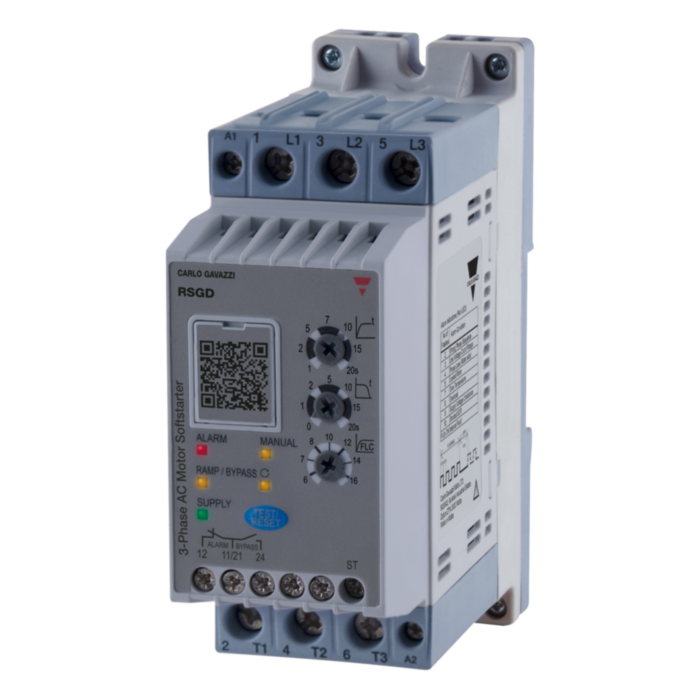

RSGD6016GGVD210 - 2PH S/START 220-600V 16A 100-240V I/P + O/L

Why Choose the Carlo Gavazzi RSGD6016GGVD210 Soft Starter?

The Carlo Gavazzi RSGD6016GGVD210 is a compact and reliable three-phase soft starter engineered for smooth acceleration and controlled stopping of industrial induction motors. As part of the advanced Carlo Gavazzi RSGD soft starter series, this unit helps reduce inrush current, minimise mechanical stress and improve operational reliability across industrial automation systems and OEM machinery applications.

Featuring integrated Class 10 overload protection, RS485 communication capability and an internal bypass relay, the RSGD6016GGVD210 combines dependable motor protection with efficient operation and simplified installation. Its compact DIN rail mounting format makes it ideal for industrial control cabinets where space optimisation and reliable motor starting are essential.

With a rated operational current of 16 A and support for 220–600 V AC three-phase systems, this soft starter is suitable for motors up to approximately 7.5 kW at 400 V AC. The integrated 100–240 V AC/DC control supply enables seamless integration into PLC and industrial automation systems.

Key Advantages

• Compact three-phase soft starter for industrial motor applications.
• 16 A operational current suitable for small to medium industrial motor loads.
• Supports 220–600 V AC three-phase systems.
• Integrated Class 10 overload protection.
• Integrated RS485 communication interface.
• Internal bypass relay improves efficiency and reduces heat generation.

Key Features

• Carlo Gavazzi RSGD soft starter series.
• 16 A rated operational current.
• 7.5 kW motor rating at 400 V AC.
• 220–600 V AC operating voltage.
• 100–240 V AC/DC control supply.
• Integrated internal bypass relay.
• 2-phase controlled soft starting.
• Integrated Class 10 overload protection.
• Integrated RS485 communication interface.
• DIN rail and panel mounting compatibility.

Technical Specifications

• Manufacturer: Carlo Gavazzi
• Series: RSGD Soft Starters
• Model: RSGD6016GGVD210
• Product type: Three-phase motor soft starter
• Rated operational current: 16 A
• Motor power at 230 V: 4 kW
• Motor power at 400 V: 7.5 kW
• Operating voltage: 187–660 V AC
• Control voltage: 100–240 V AC/DC
• Controlled phases: 2-phase
• Frequency: 50 / 60 Hz
• Protection rating: IP20
• Overload protection: Class 10
• Communication: RS485
• Mounting type: DIN rail or panel mounting
• Internal bypass: Yes
• Product width: 45 mm
• Product height: 125 mm
• Product depth: 110 mm
• Operating temperature: -20 °C to +60 °C

Reliable Soft Starting for Industrial Motors

Soft starters such as the Carlo Gavazzi RSGD6016GGVD210 gradually increase motor voltage during startup, helping reduce electrical and mechanical stress on motors, gearboxes and connected industrial equipment. This improves equipment lifespan while minimising sudden current surges and voltage dips within industrial power systems.

The RSGD series is designed for industrial automation applications where compact dimensions, integrated protection and simplified installation are essential. Integrated bypass functionality improves operating efficiency by reducing heat generation after startup while communication capability enables improved system diagnostics and monitoring.

Typical Applications

• Industrial pumps and water systems.
• Conveyor and material handling equipment.
• Fans and ventilation systems.
• Compressors and process machinery.
• Packaging and production systems.
• Industrial automation and OEM control cabinets.

Trusted by Industrial Automation Engineers Worldwide

Carlo Gavazzi RSGD soft starters are widely used in industrial automation systems where reliable motor starting, integrated protection and reduced mechanical stress are essential for efficient long-term equipment operation.
