RSGD4016E0VD200 - 2PH S/START 220-400V 16A 110-400V I/P

Why Choose the Carlo Gavazzi RSGD4016E0VD200 Soft Starter?

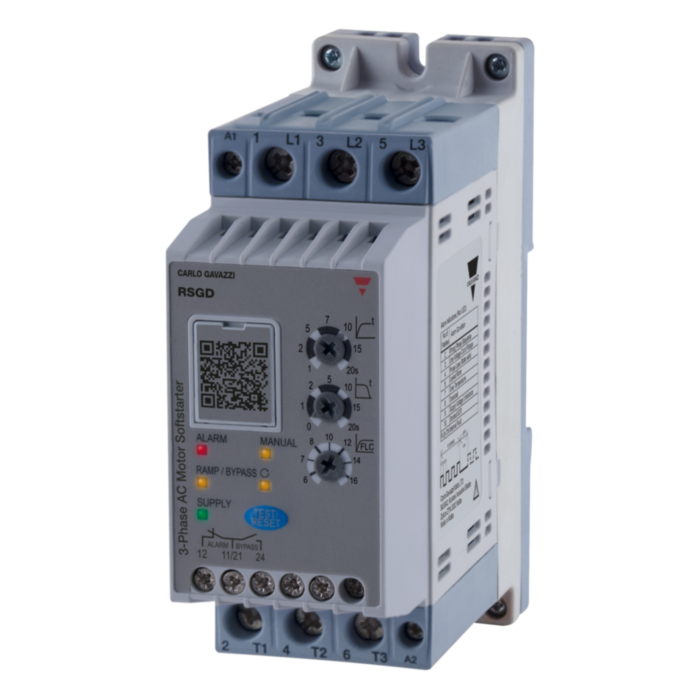

The Carlo Gavazzi RSGD4016E0VD200 is a compact and reliable three-phase soft starter designed to provide controlled motor starting and stopping for industrial induction motors. As part of the dependable Carlo Gavazzi RSGD soft starter series, this unit helps reduce startup current, minimise mechanical stress and improve overall motor system performance in demanding industrial applications.

Featuring integrated bypass functionality and advanced motor control capabilities, the RSGD4016E0VD200 delivers smooth acceleration while reducing electrical stress on power systems and connected equipment. Its compact housing and simplified setup make it ideal for industrial automation systems, OEM machinery and modern control panel installations.

With a rated operational current of 16 A and support for 220–400 V AC three-phase systems, this soft starter is suitable for motors up to approximately 7.5 kW at 400 V AC. The integrated 24 V DC control supply enables straightforward integration with PLCs and industrial automation equipment.

Key Advantages

• Compact three-phase soft starter for industrial motor control.
• 16 A operational current suitable for medium-duty applications.
• Supports 220–400 V AC three-phase systems.
• Integrated internal bypass relay improves efficiency.
• Helps minimise startup current and mechanical motor stress.
• Compact DIN rail and panel mounting format.

Key Features

• Carlo Gavazzi RSGD soft starter series.
• 16 A rated operational current.
• 7.5 kW motor rating at 400 V AC.
• 220–400 V AC operating voltage.
• 24 V DC control voltage.
• Integrated internal bypass relay.
• 2-phase controlled soft starting.
• LED status indication for diagnostics and operation monitoring.
• DIN rail and panel mounting compatibility.
• Suitable for industrial automation and OEM machinery systems.

Technical Specifications

• Manufacturer: Carlo Gavazzi
• Series: RSGD Soft Starters
• Model: RSGD4016E0VD200
• Product type: Three-phase motor soft starter
• Rated operational current: 16 A
• Motor power at 400 V: 7.5 kW
• Motor power at 230 V: 4 kW
• Operating voltage: 220–400 V AC
• Control voltage: 24 V DC
• Controlled phases: 2-phase
• Frequency: 50 / 60 Hz
• Protection rating: IP20
• Mounting type: DIN rail or panel mounting
• Internal bypass: Yes
• Dimensions (H × W × D): approx. 100 × 45 × 120 mm
• Operating temperature: -20 °C to +60 °C

Reliable Motor Starting for Industrial Automation

Soft starters such as the Carlo Gavazzi RSGD4016E0VD200 help protect motors and connected equipment by gradually ramping voltage during startup. This reduces electrical stress, lowers peak current demand and minimises wear on drive systems, helping improve operational reliability and equipment lifespan.

The RSGD series is designed for industrial automation environments where compact dimensions, simplified installation and dependable motor control are essential. Integrated bypass functionality helps improve energy efficiency by reducing power dissipation after startup.

Typical Applications

• Industrial pumps and booster systems.
• Conveyor and material handling equipment.
• Fans and ventilation systems.
• Compressors and processing machinery.
• Packaging and production systems.
• Industrial automation and OEM control panels.

Trusted by Industrial Automation Engineers Worldwide

Carlo Gavazzi RSGD soft starters are widely used in industrial automation systems where reliable motor starting, compact dimensions and reduced mechanical stress are essential for efficient operation and long-term equipment protection.
