RFN382300 - T/O RELAY 17-23A MAN/AUTO
MPN: RFN382300
Special Price
£51.60
£43.00
Regular Price
£85.99
Why Choose the RFN382300?

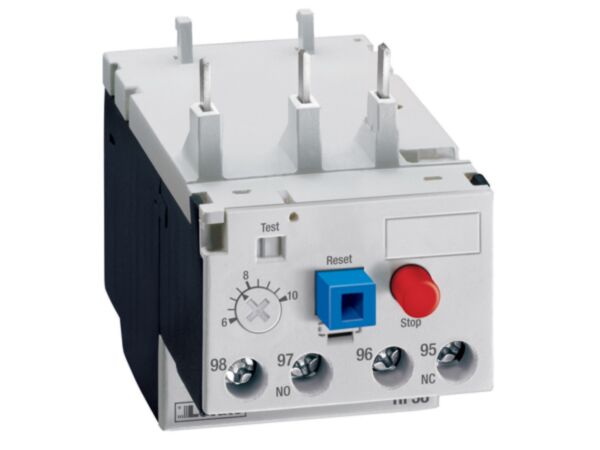

Designed for dependable motor protection, the Lovato RFN382300 thermal overload relay safeguards three-phase loads in the 17…23 A range. This non phase failure / non single‑phase sensitive device offers manual or automatic resetting and three-pole protection. For fast, tidy assembly, the RFN382300 mounts directly onto BF09…BF38 BF series contactors, helping panel builders and MRO teams streamline installations without additional adapters.
Engineered to international standards, this relay provides IP20 frontal protection, Ui 690 V and 6 kV impulse withstand for robust performance. It operates from −25 to 60 °C and up to 3000 m altitude, with a three-pole design for three-phase circuits. Conformity to IEC/EN 60947-1 and 60947-4-1, plus UL508 and CSA C22.2 n° 14, supports confident specification in industrial control panels.
Key Benefits
- Adjustable 17…23 A range suits a wide span of motor loads.
- Manual or automatic reset modes for flexible maintenance and recovery.
- Direct mounting on BF09…BF38 contactors simplifies compact panel layouts.
- Three-pole protection for standard three-phase motor applications.
- IP20 frontal protection enhances safety during panel integration.
- Rated insulation 690 V and 6 kV impulse withstand robustness.
- Operates from −25 to 60 °C for varied site conditions.
- Built and tested to IEC/EN, UL and CSA standards.
Technical Specification
- Number of poles: 3
- Pollution degree: 3
- IP degree (frontal): IP20
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Terminal tightening torque: 2 to 2.5 Nm
- Ith (IEC): 10 A
- Operating temperature: -25 to 60 °C
- Storage temperature: -50 to 70 °C
- Max altitude: 3000 m
- Weight: 160 g
What’s Included
- Lovato RFN382300 thermal overload relay unit
- Install and operation leaflet
- Protective packaging
Applications
- Three-phase motor protection in control panels
- Pumps, fans and HVAC drives
- Conveyors, mixers and material handling equipment
- Compressors and machine tools
- General industrial automation circuits
Frequently Asked Questions
What is the adjustable operational current range?
The RFN382300 covers an adjustable range of 17...23 A.
Does it detect phase failure or single-phasing?
It is Non phase failure / Non single-phase sensitive and is not phase-failure sensitive.
What reset modes are available?
It supports manual or automatic resetting, selectable to suit the application.
Which contactors is it compatible with?
It mounts directly on BF09…BF38 contactors in the BF series.
What standards does it comply with?
It conforms to IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 and CSA C22.2 n° 14.
Safety note: Install and commission only by qualified personnel. Set the current to match the motor rating, observe the IP20 limitations, and tighten terminals to the specified torque per the manufacturer’s instructions.
| Manufacturer Part Number | RFN382300 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975169711 |
