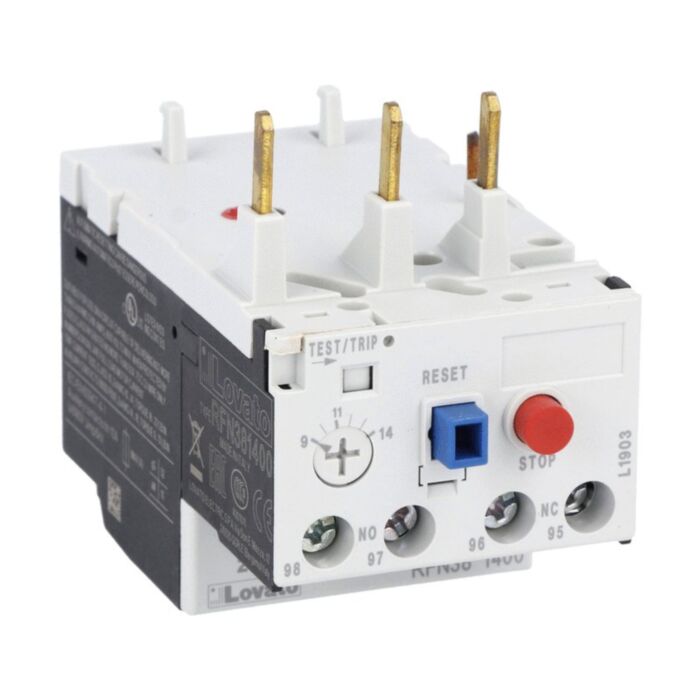

RFN381400 - T/O RELAY 9-14A MAN/AUTO
MPN: RFN381400
Special Price
£45.60
£38.00
Regular Price
£76.00
Why Choose the RFN381400?
Engineered for dependable motor protection, the Lovato RFN381400 Thermal Overload Relay safeguards three‑phase circuits in the 9...14 A range. This non phase failure/non single‑phase sensitive, 3‑pole device offers manual or automatic reset and mounts directly on BF09–BF38 contactors. With IP20 frontal protection and a compact footprint, it’s a ready‑to‑fit solution for BF series motor starters and control panels.
Rated insulation voltage Ui 690 V and impulse withstand 6 kV deliver resilience in demanding panels. Conforming to IEC/EN 60947‑1 and 60947‑4‑1, plus UL508 and CSA C22.2 n° 14, it operates from −25 to 60 °C up to 3000 m altitude. Terminal screws tighten to 2–2.5 Nm, and the 160 g unit supports efficient installation and maintenance.
Key Benefits
- Adjustable 9...14 A setting for precise motor protection.
- Manual or automatic reset to suit application needs.
- Direct mounting on BF09–BF38 contactors for fast assembly.
- Three-pole design for three-phase motor circuits.
- IP20 frontal protection enhances operator safety.
- Ui 690 V and 6 kV Uimp for high dielectric strength.
- Conforms to IEC/EN 60947, UL508 and CSA standards.
- Operates −25 to 60 °C, up to 3000 m altitude.
Technical Specification
- Number of poles: 3
- Pollution degree: 3
- IP degree (frontal): IP20
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Terminal tightening torque: 2 to 2.5 Nm
- Ith (IEC): 10 A
- Operating temperature: -25 to 60 °C
- Storage temperature: -50 to 70 °C
- Max altitude: 3000 m
- Weight: 160 g
What’s Included
- Lovato RFN381400 thermal overload relay unit
- Installation leaflet
Applications
- Three-phase motor protection with BF09–BF38 contactors
- Motor starter assemblies in industrial control panels
- Installations requiring 9...14 A overload protection
- Systems built to IEC/EN 60947, UL508 and CSA standards
- Sites operating within −25 to 60 °C and up to 3000 m altitude
Frequently Asked Questions
What operational current range does the RFN381400 cover?
It covers 9...14 A for motor overload protection.
Does this relay support manual and automatic reset?
Yes, it can be reset manually or automatically.
Is the relay phase-failure sensitive?
No, it is non phase failure/non single‑phase sensitive.
Which contactors can it mount on directly?
It mounts directly on BF09–BF38 contactors in the BF series.
Which standards does the RFN381400 conform to?
IEC/EN 60947‑1, IEC/EN 60947‑4‑1, UL508 and CSA C22.2 n° 14.
Safety note: Install and adjust only by qualified personnel. Isolate power before work and operate within the stated ratings and environmental limits.
| Manufacturer Part Number | RFN381400 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975169735 |
