RFN200100 - T/O RELAY 60-100A MAN-AUTO

Why Choose the RFN200100?

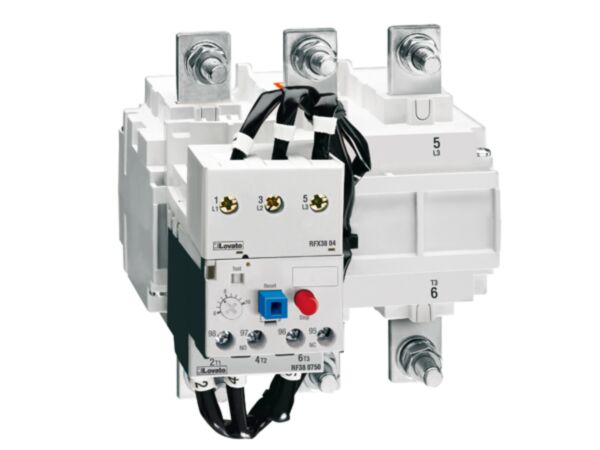

Lovato RFN200100 is a thermal overload relay for robust three-phase motor protection. It is three-pole and non phase failure / non single-phase sensitive, with a wide 60...100 A operational current range. Choose manual or automatic resetting to suit your control scheme, and benefit from screw mounting, IP20 frontal protection, 1000 V rated insulation and 6 kV impulse withstand capability.

Designed for Lovato B series contactors, this relay delivers reliable performance across -25 to 60 °C operating temperatures and up to 3000 m altitude. It conforms to IEC/EN 60947-1 and 60947-4-1, as well as UL508 and CSA C22.2 n° 14, supporting global panel compliance. A sturdy 3-pole build and clear IP20 front make integration straightforward.

Key Benefits

• Wide 60...100 A operational current range for flexible motor protection.
• Manual or automatic reset options to suit control strategies.
• Three-pole design for three-phase motor applications.
• IP20 frontal protection and 1000 V insulation rating.
• 6 kV impulse withstand for enhanced dielectric robustness.
• Mounts by screw; compatible with Lovato B series contactors.
• Operates from -25 to 60 °C and up to 3000 m.
• Conforms to IEC/EN 60947, UL508 and CSA standards.

Technical Specification

• Number of poles: 3
• Pollution degree: 3
• IP degree (frontal): IP20
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 6 kV
• Terminal tightening torque: 18 to 18 Nm
• Ith (IEC): 10 A
• Operating temperature: -25 to 60 °C
• Storage temperature: -50 to 70 °C
• Max altitude: 3000 m
• Weight: 2150 g

What’s Included

• Lovato RFN200100 thermal overload relay
• Installation and safety information leaflet
• Protective packaging for transit

Applications

• Three-phase motor protection in industrial control panels
• Panels using Lovato B series contactors
• Installations requiring IP20 front and 1000 V insulation
• Environments from -25 to 60 °C and up to 3000 m altitude

Safety note: Ensure installation and commissioning are performed by qualified personnel. Always isolate power before work, configure the reset mode appropriately, and operate within the specified current, voltage, temperature and altitude limits.
