R3D415 - EARTH LEAKAGE RELAY R3D 110-24 0-415VAC

Why Choose the R3D415?

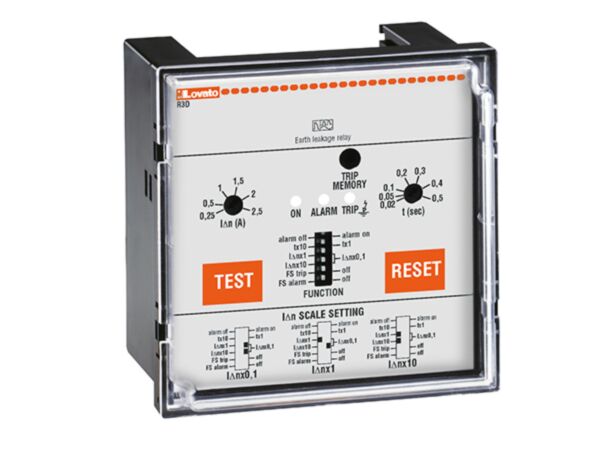

Engineered for dependable protection, the Lovato R3D415 Earth Leakage Relay (SKU R3D415) delivers precise monitoring with two operating thresholds. Designed for flush-mount panels, it works with an external CT for flexible installation and remote sensing. A multi-voltage supply of 110VAC, 240VAC or 415VAC streamlines standardisation across panels, while a clear flag indicator and fail-safe function support fast diagnostics and enhanced safety.

Built for longevity and compliance, the R3D series relay boasts a mechanical life of 50,000,000 cycles and conforms to IEC/EN 60947-2. Operating reliably from -10 to +60 °C and weighing 405 g, it suits demanding industrial environments. Practical details such as a 0.5 Nm terminal tightening torque and two configurable contacts simplify installation, commissioning and integration into new or retrofit control assemblies.

Key Benefits

• Dual operating thresholds enable precise earth leakage protection settings.
• Multi-voltage 110/240/415 VAC supply simplifies panel standardisation.
• External CT allows flexible installation and remote leakage sensing.
• Fail-safe function enhances safety in critical protection circuits.
• Flush-mount format saves space in control panels and switchboards.
• Flag indicator provides clear, immediate trip or status visibility.
• Mechanical life of 50,000,000 cycles supports long service.
• Conforms to IEC/EN 60947-2 for recognised performance and safety.

Technical Specification

• Product type designation: R3D
• Terminal tightening torque (max): 0.5 Nm
• Mechanical life: 50000000 cycles
• Operating temperature: -10 to +60 °C
• Storage temperature: -20 to +80 °C
• Weight: 405 g

What’s Included

• Lovato R3D415 earth leakage relay (flush-mount)
• User instructions/quick start guide
• Mounting hardware as supplied by manufacturer
• Compliance and warranty information

Applications

• Industrial control panels and MCCs
• Low-voltage distribution boards and switchboards
• OEM machinery and equipment protection
• Building services and plant utilities
• Retrofit upgrades to enhance earth leakage protection

Safety note: Installation must be performed by qualified personnel with power isolated. Use a suitable external CT, observe the 0.5 Nm terminal torque limit, and follow IEC/EN 60947-2 and the manufacturer’s instructions.
