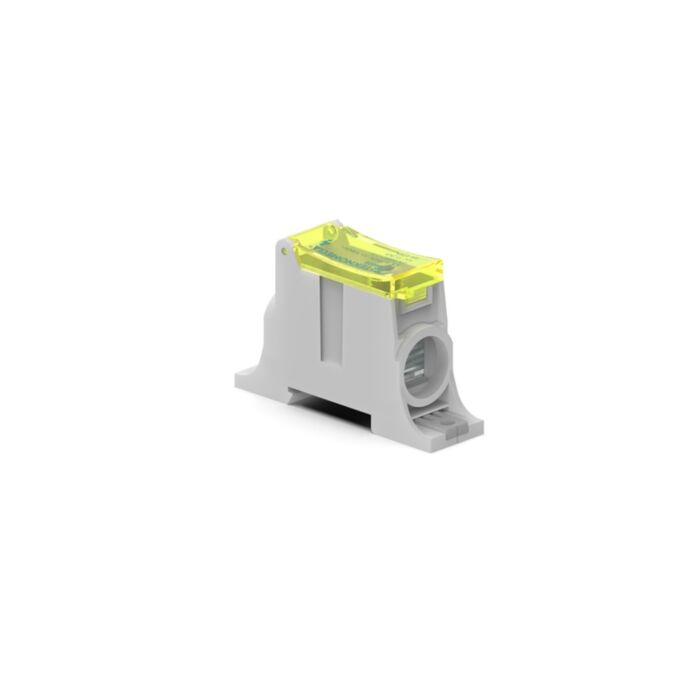

PTB6020 Teknomega 1 Pole 160A Power Terminals

Why Choose the Teknomega PTB6020 Power Terminal Block?

The Teknomega PTB6020 is a compact single-pole power terminal block designed for safe and organised cable termination in industrial switchboards, electrical distribution panels and control cabinets. Rated for 160 A, it provides a reliable solution for medium-current power distribution where secure termination and compact panel layout are essential.

The terminal block features a durable PA6 UL94-V0 self-extinguishing insulating body with a tinned copper conductive block designed to ensure excellent electrical conductivity and compatibility with both aluminium and copper conductors. A transparent yellow protective cover helps prevent accidental contact while allowing visual inspection of connections.

Engineered for industrial environments, the PTB6020 supports conductor sizes up to 70 mm² and is designed for installation on a standard DIN rail or panel mounting, making it suitable for electrical distribution inside control panels and switchboards.

Key Features

• Single-pole power terminal block for industrial electrical distribution.
• Rated current 160 A for medium-power feeder connections.
• Supports copper or aluminium conductors up to 70 mm².
• PA6 UL94-V0 insulating body with high dielectric strength.
• Tinned copper conductive block ensuring reliable electrical performance.
• Transparent protective cover helping prevent accidental contact.
• Galvanised steel screws and clamps for secure conductor tightening.
• DIN rail or panel mounting for flexible installation.
• IP10 protection rating suitable for enclosed panel environments.
• Compatible with COFLEX and J-Link connections for busbar or flexible links.

Technical Specifications

• Manufacturer: Teknomega
• Model: PTB6020
• Reference: PTB 160
• Product type: Power terminal block
• Poles: 1
• Connections: 1 input / 1 output
• Rated current: 160 A
• Conductor size (stripped wire): 25 – 70 mm²
• Conductor size (with ferrule): 10 – 50 mm²
• Nominal insulation voltage (Ui): 1000 V
• Short-circuit current (Icw 1s): 11.2 kA
• Peak short-circuit current (Ipk): 41 kA
• Insulating body: PA6 UL94-V0
• Conduction block: Tinned copper
• Clamps: Galvanised steel and aluminium alloy
• Maximum operating temperature: +85 °C
• Protection degree: IP10
• Dimensions (A × B × C): approx. 84 × 24 × 54 mm
• Weight: approx. 0.115 kg
• Standard compliance: EN 60947-7-1

Typical Applications

• Industrial switchboards and control panels.
• Power distribution inside automation cabinets.
• Medium-current feeder cable termination.
• Electrical distribution in machinery control systems.
• Panel building and industrial electrical infrastructure.

Trusted by Panel Builders

Teknomega power terminal blocks are widely used by panel builders and electrical engineers to achieve safe and organised power distribution inside industrial switchboards and control panels.
