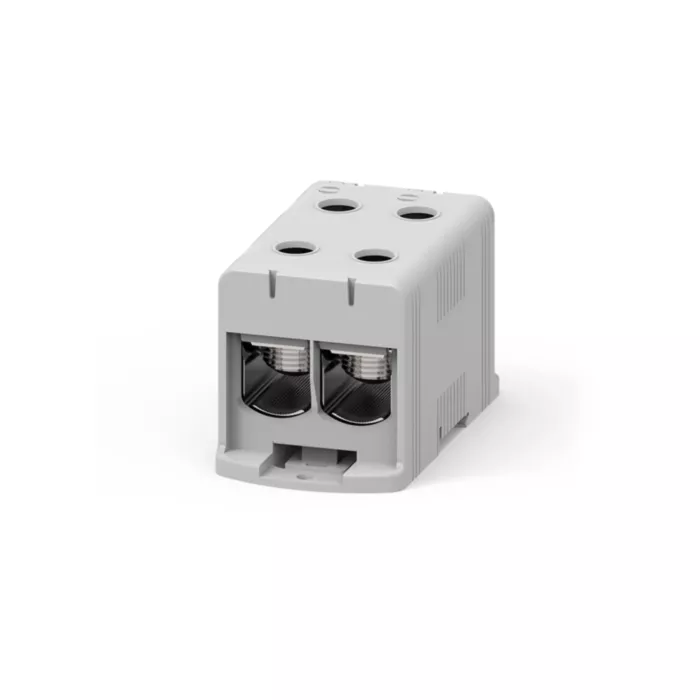

PTB3621 Teknomega 1 Pole 2 Way Connectors Power Terminals

Why Choose the Teknomega PTB3621 Power Terminal Block?

The Teknomega PTB3621 is a heavy-duty single-pole power terminal block with dual connections designed for high-current electrical distribution in industrial switchboards, electrical panels and automation cabinets. It provides a 2 input / 2 output configuration, allowing efficient connection and distribution of large feeder cables while maintaining a compact installation footprint.

Engineered to support aluminium or copper conductors from approximately 35 mm² up to 300 mm², the PTB3621 is suitable for high-capacity industrial power systems. The terminal features a PA66 UL94-V0 self-extinguishing insulating body, a tinned aluminium conductive block, and galvanised steel screws to provide reliable conductivity and corrosion resistance when connecting mixed conductor materials.

With a rated insulation voltage of 1000 V AC / 1500 V DC, impulse withstand voltage of 8 kV, and a typical current rating of around 440 A, the PTB3621 delivers dependable performance in demanding industrial power distribution environments.

Key Features

• Single-pole power terminal block designed for high-current distribution.
• 2 input / 2 output configuration for cable branching or distribution.
• Supports aluminium or copper conductors from approx. 35 mm² to 300 mm².
• Typical rated current around 440 A depending on installation conditions.
• PA66 UL94-V0 insulating body with self-extinguishing safety properties.
• Tinned aluminium conductor block enabling reliable Cu/Al cable connections.
• Galvanised steel clamping screws ensuring strong mechanical cable retention.
• DIN rail mounting for easy integration into electrical panels.
• IP20 protection rating for installation inside electrical enclosures.
• Grey housing commonly used for phase or general distribution circuits.

Technical Specifications

• Manufacturer: Teknomega
• Model: PTB3621
• Reference: PTB-2-300-G
• Product type: Power terminal block
• Poles: 1
• Connections: 2 input / 2 output
• Maximum conductor size (Cu/Al): up to 300 mm²
• Typical conductor range: approx. 35 – 300 mm²
• Conductor material: Tinned aluminium
• Insulating body: PA66 UL94-V0
• Rated insulation voltage (Ui): 1000 V AC / 1500 V DC
• Impulse withstand voltage (Uimp): 8 kV
• Rated current: approx. 440 A
• Maximum operating temperature: +85 °C
• Protection degree: IP20
• Dimensions (A × B × C): approx. 132.3 × 71.7 × 77 mm
• Weight: approx. 0.85 kg
• Colour: Grey
• Standards: EN 60947-7-1, EN 61238-1-1

Typical Applications

• Main feeder distribution inside industrial switchboards.
• Branching large conductors in power distribution panels.
• Automation cabinets and machine control panels.
• Panel building projects requiring high-current cable splitting.
• Industrial and commercial electrical power infrastructure.

Trusted by Panel Builders

Teknomega PTB power terminal blocks are widely used by panel builders and electrical engineers to create safe, organised and reliable high-current distribution points inside industrial switchboards.
