PTB3522 Teknomega 1 Pole 2 Way Connectors Power Terminals

Why Choose the Teknomega PTB3522 Power Terminal Block?

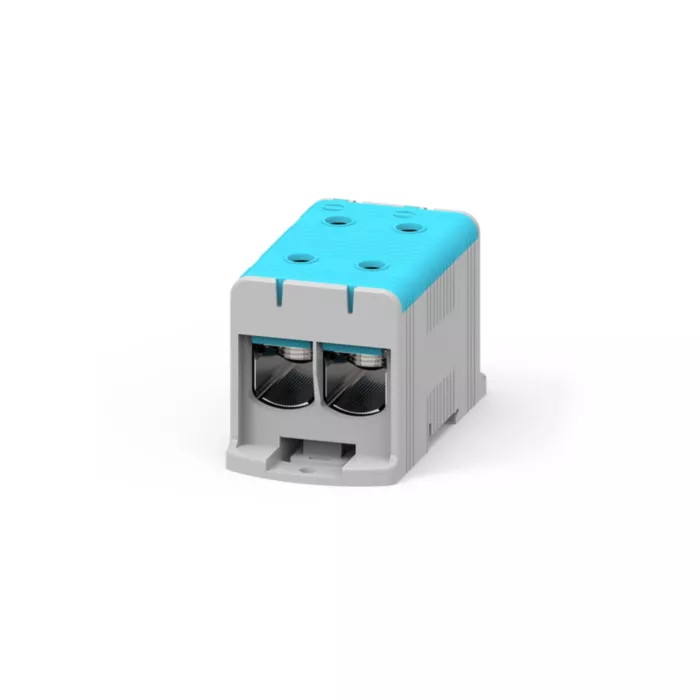

The Teknomega PTB3522 is a heavy-duty single-pole power terminal block designed for high-capacity power distribution within industrial switchboards, automation cabinets and electrical distribution panels. It features a 2 input / 2 output configuration supporting aluminium or copper conductors from 35 mm² up to 240 mm², allowing efficient feeder branching from a single supply connection.

The terminal block is manufactured using a robust PA66 UL94-V0 self-extinguishing insulating body combined with a tinned aluminium conductive block and galvanised steel clamping screws. This construction ensures strong electrical conductivity and reliable cable retention when connecting both copper and aluminium conductors. The unit is rated for 1000 V AC / 1500 V DC with an impulse withstand voltage of 8 kV, providing dependable performance in demanding industrial installations.

Key Features

• Single-pole power terminal block for industrial electrical distribution.
• 2 input / 2 output configuration for feeder cable branching.
• Supports aluminium or copper conductors from 35 mm² to 240 mm².
• Current rating up to approximately 380 A depending on conductor size and installation conditions.
• PA66 UL94-V0 insulating body with self-extinguishing safety properties.
• Tinned aluminium conductor block for reliable electrical conductivity.
• Galvanised steel clamping screws ensuring secure cable retention.
• DIN rail or panel mounting for flexible installation.
• IP20 protection rating suitable for installation inside electrical enclosures.
• Blue housing typically used for neutral circuit identification.

Technical Specifications

• Manufacturer: Teknomega
• Model: PTB3522
• Reference: PTB-2-240-B
• Product type: Power terminal block
• Poles: 1
• Connections: 2 input / 2 output
• Conductor range: 35 mm² to 240 mm² (Cu/Al)
• Current rating: up to approx. 380 A
• Conductor material: Tinned aluminium
• Insulating body: PA66 UL94-V0
• Rated insulation voltage (Ui): 1000 V AC / 1500 V DC
• Impulse withstand voltage (Uimp): 8 kV
• Maximum operating temperature: +85 °C
• Protection degree: IP20
• Dimensions (A × B × C): approx. 122.5 × 64.8 × 71.4 mm
• Weight: approx. 0.6 kg
• Standards: EN 60947-7-1, EN 61238-1-1

Typical Applications

• Main feeder distribution in industrial switchboards.
• High-current electrical distribution panels.
• Automation cabinets and machine control systems.
• Industrial power distribution infrastructure.
• Large conductor branching and termination points.

Trusted by Panel Builders

Teknomega PTB power terminal blocks are widely used by electrical engineers and panel builders to create safe and organised high-current connections within industrial switchboards and power distribution systems.
