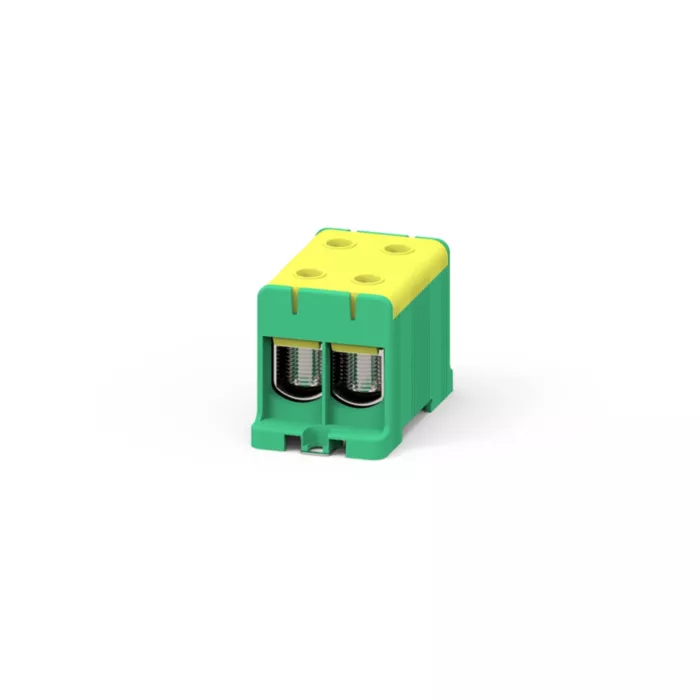

PTB3423 Teknomega 1 Pole 2 Way Connectors Power Terminals

Why Choose the Teknomega PTB3423 Power Terminal Block?

The Teknomega PTB3423 is a heavy-duty single-pole power terminal block designed for high-current conductor distribution within industrial switchboards, automation cabinets and electrical distribution panels. It provides a 2 input / 2 output configuration for aluminium or copper conductors up to 150 mm², enabling safe and efficient feeder branching from a single supply connection.

Manufactured with a durable PA66 UL94-V0 self-extinguishing insulating body and a tinned aluminium conductive block, the PTB3423 ensures reliable electrical conductivity while maintaining high mechanical strength and corrosion resistance. The terminal block is rated for 1000 V AC / 1500 V DC with an impulse withstand voltage of 8 kV, delivering dependable performance in demanding industrial installations.

Key Features

• Single-pole power terminal block for industrial power distribution.
• 2 input / 2 output configuration enabling efficient feeder branching.
• Supports aluminium or copper conductors up to 150 mm².
• PA66 UL94-V0 insulating body with self-extinguishing properties.
• Tinned aluminium conductive block ensuring strong electrical conductivity.
• Galvanised steel clamping screws for secure cable termination.
• DIN rail or panel mounting options for flexible installation.
• IP20 protection rating suitable for installation inside electrical enclosures.
• Yellow-green housing typically used for protective earth identification.

Technical Specifications

• Manufacturer: Teknomega
• Model: PTB3423
• Reference: PTB-2-150-Y
• Product type: Power terminal block
• Poles: 1
• Connections: 2 input / 2 output
• Maximum conductor size (Cu/Al): up to 150 mm²
• Conductor material: Tinned aluminium
• Insulating body: PA66 UL94-V0
• Rated insulation voltage (Ui): 1000 V AC / 1500 V DC
• Impulse withstand voltage (Uimp): 8 kV
• Maximum operating temperature: +85 °C
• Protection degree: IP20
• Dimensions: approx. 96.6 × 51.3 × 59.2 mm
• Weight: approx. 0.291 kg
• Standards: EN 60947-7-1, EN 61238-1-1

Typical Applications

• Main feeder distribution inside industrial switchboards.
• Electrical distribution panels and power cabinets.
• Automation systems and machine control panels.
• Industrial power distribution systems.
• Large conductor branching and termination points.

Trusted by Panel Builders

Teknomega power terminal blocks are widely used by electrical engineers and panel builders to create safe and organised high-current power distribution inside industrial control panels and switchboards.
