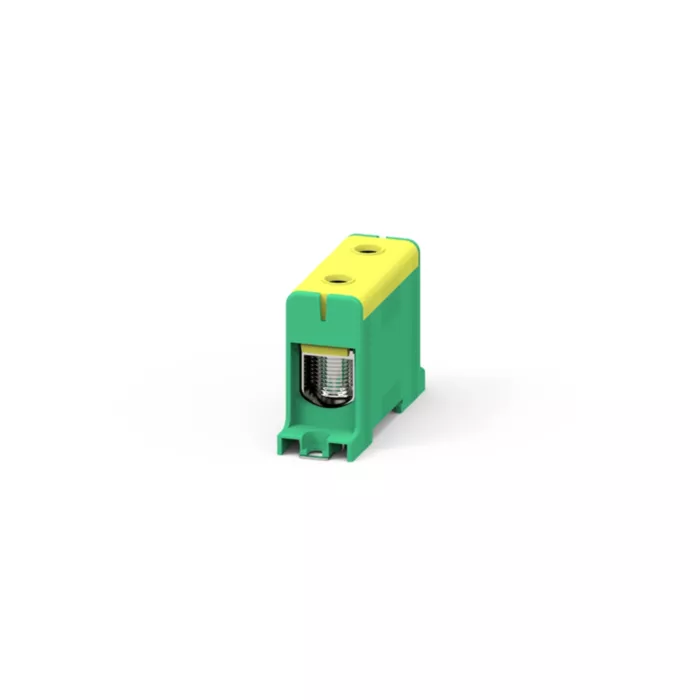

PTB3413 Teknomega 1 Pole 1 Way Connectors Power Terminals

Why Choose the Teknomega PTB3413 Power Terminal Block?

The Teknomega PTB3413 is a heavy-duty single-pole power terminal block designed for secure termination of large conductors in industrial switchboards, electrical distribution panels and automation cabinets. It supports aluminium or copper conductors up to 150 mm², providing a dependable connection point for high-capacity feeder cables in demanding electrical installations.

The terminal block features a durable PA66 UL94-V0 self-extinguishing insulating body combined with a tinned aluminium conductive block and galvanised steel screws to ensure reliable electrical conductivity and secure cable clamping. With a rated insulation voltage of 1000 V AC / 1500 V DC and an impulse withstand voltage of 8 kV, the PTB3413 is engineered for dependable performance in demanding industrial power distribution environments.

Key Features

• Single-pole power terminal block for industrial electrical panels and switchboards.
• 1 input / 1 output configuration for secure conductor termination.
• Supports aluminium or copper conductors up to 150 mm².
• PA66 UL94-V0 insulating body with self-extinguishing properties.
• Tinned aluminium conductor block ensuring reliable electrical conductivity.
• Galvanised steel clamping screws for strong cable retention.
• DIN rail or panel mounting options for flexible installation.
• IP20 protection rating suitable for installation inside electrical enclosures.
• Yellow-green housing typically used for protective earth identification.

Technical Specifications

• Manufacturer: Teknomega
• Model: PTB3413
• Reference: PTB-1-150-Y
• Product type: Power terminal block
• Poles: 1
• Connections: 1 input / 1 output
• Maximum conductor size (Cu/Al): up to 150 mm²
• Conductor material: Tinned aluminium
• Insulating body: PA66 UL94-V0
• Rated insulation voltage (Ui): 1000 V AC / 1500 V DC
• Impulse withstand voltage (Uimp): 8 kV
• Maximum operating temperature: +85 °C
• Protection degree: IP20
• Dimensions: approx. 96.6 × 29.3 × 59.2 mm
• Weight: approx. 0.162 kg
• Standards: EN 60947-7-1, EN 61238-1-1

Typical Applications

• Main feeder conductor termination in industrial switchboards.
• Electrical power distribution panels and cabinets.
• Automation control panels and machine cabinets.
• Industrial power distribution systems.
• Protective earth conductor termination for large cables.

Trusted by Panel Builders

Teknomega PTB power terminal blocks are widely used by electrical engineers and panel builders to create safe and organised high-current connections inside industrial switchboards and power distribution systems.
