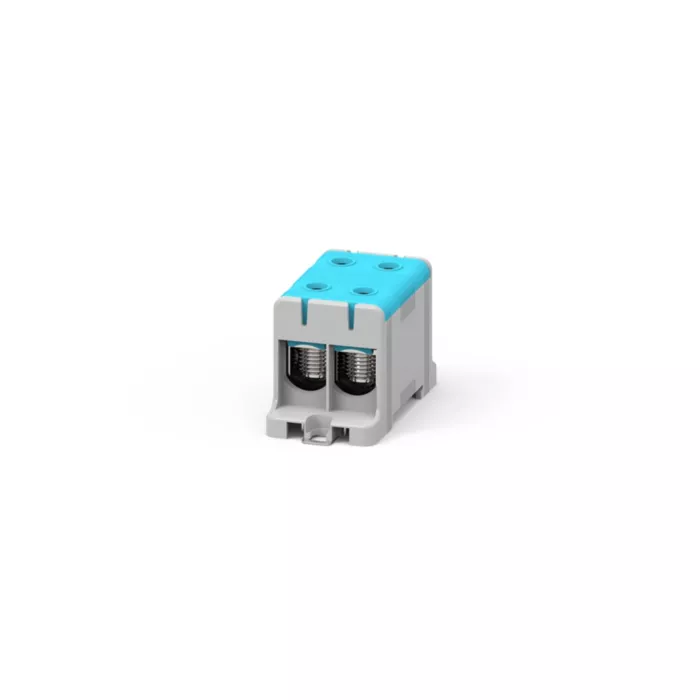

PTB3322 Teknomega 1 Pole 2 Way Connectors Power Terminals

Why Choose the Teknomega PTB3322 Power Terminal Block?

The Teknomega PTB3322 is a heavy-duty single-pole power terminal block engineered for high-current conductor distribution in industrial switchboards, electrical distribution boards and automation cabinets. It features a 2 input / 2 output configuration supporting aluminium or copper conductors up to 95 mm², making it ideal for feeder distribution and structured power routing within large electrical panels.

The terminal block incorporates a durable PA66 UL94-V0 self-extinguishing insulating body, a tinned aluminium conductor block and galvanised steel screws to provide reliable electrical conductivity and strong mechanical cable clamping. Rated up to 1000 V AC / 1500 V DC with an impulse withstand voltage of 8 kV, the PTB3322 is designed for dependable performance in demanding industrial electrical installations.

Key Features

• Single-pole power terminal block for industrial switchboards and power distribution panels.
• 2 input / 2 output configuration enabling efficient feeder distribution.
• Maximum conductor size up to 95 mm² for aluminium or copper cables.
• PA66 UL94-V0 insulating body with self-extinguishing properties.
• Tinned aluminium conductor block ensuring reliable electrical conductivity.
• Galvanised steel clamping screws for secure cable termination.
• DIN rail or panel mounting for flexible installation.
• IP20 protection rating suitable for installation inside electrical enclosures.
• Blue housing typically used for neutral circuit identification.

Technical Specifications

• Manufacturer: Teknomega
• Model: PTB3322
• Reference: PTB-2-95-B
• Product type: Power terminal block
• Poles: 1
• Connections: 2 input / 2 output
• Maximum conductor size (Cu/Al): up to 95 mm²
• Conductor material: Tinned aluminium
• Insulating body: PA66 UL94-V0
• Rated insulation voltage (Ui): 1000 V AC / 1500 V DC
• Impulse withstand voltage (Uimp): 8 kV
• Maximum operating temperature: +85 °C
• Protection degree: IP20
• Dimensions: approx. 89.1 × 42 × 49.6 mm
• Weight: approx. 0.164 kg
• Standards: EN 60947-7-1, EN 61238-1-1

Typical Applications

• High-current feeder distribution inside industrial switchboards.
• Electrical distribution boards and power cabinets.
• Automation control panels and machine cabinets.
• Industrial power distribution systems.
• Large conductor termination within electrical installations.

Trusted by Panel Builders

Teknomega PTB power terminal blocks are widely used by electrical engineers and panel builders to create safe and organised high-current connections inside industrial switchboards and distribution systems.
