PTB3311 Teknomega 1 Pole 1 Way Connectors Power Terminals

Why Choose the Teknomega PTB3311 Power Terminal Block?

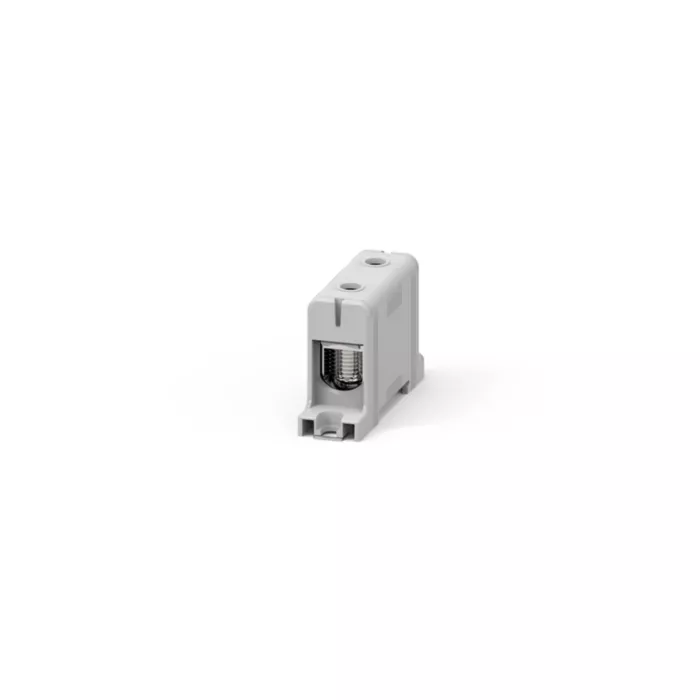

The Teknomega PTB3311 is a heavy-duty single-pole power terminal block designed for high-current conductor termination in industrial switchboards, distribution panels and electrical control cabinets. It supports aluminium or copper conductors up to 95 mm², making it suitable for large feeder connections where reliable electrical continuity and secure clamping are critical.

The terminal features a robust PA66 UL94-V0 self-extinguishing insulating body combined with a tinned aluminium conductor block and galvanised steel screws for strong mechanical and electrical performance. With a rated insulation voltage of 1000 V AC / 1500 V DC and impulse withstand voltage of 8 kV, the PTB3311 is engineered for safe operation in demanding industrial power distribution environments.

Key Features

• Single-pole power terminal block for industrial switchboards.
• 1 conductor connection for aluminium or copper cables.
• Maximum conductor size up to 95 mm².
• PA66 UL94-V0 self-extinguishing insulating body for enhanced electrical safety.
• Tinned aluminium conductor block for reliable electrical conductivity.
• Galvanised steel screws for secure cable clamping.
• DIN rail or panel mounting for flexible installation.
• IP20 protection suitable for installation inside electrical enclosures.
• Grey housing commonly used for phase or general circuit identification.

Technical Specifications

• Manufacturer: Teknomega
• Model: PTB3311
• Reference: PTB-1-95-G
• Product type: Power terminal block
• Poles: 1
• Connections: 1 terminal
• Maximum conductor size (Cu/Al): up to 95 mm²
• Conductor material: Tinned aluminium
• Insulating body: PA66 UL94-V0
• Rated insulation voltage (Ui): 1000 V AC / 1500 V DC
• Impulse withstand voltage (Uimp): 8 kV
• Protection degree: IP20
• Maximum operating temperature: +85 °C
• Dimensions: approx. 89.1 × 24.3 × 49.6 mm
• Weight: approx. 0.09 kg
• Standards: EN 60947-7-1, EN 61238-1-1

Typical Applications

• High-current conductor termination in industrial switchboards.
• Main feeder connections inside electrical distribution panels.
• Machine building and OEM electrical assemblies.
• Industrial automation cabinets and control systems.
• Large conductor termination for power distribution circuits.

Trusted by Panel Builders

Teknomega power terminal blocks are widely used by electrical engineers and panel builders to create safe and organised high-current power connections in industrial switchboards and distribution systems.
