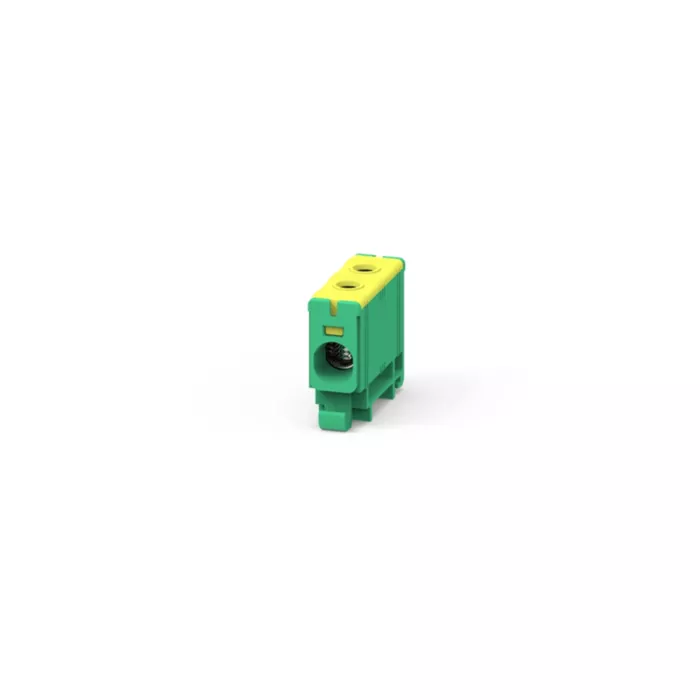

PTB3113 Teknomega 1 Pole 2 Way connector Power Terminals

Why Choose the Teknomega PTB3113 Power Terminal Block?

The Teknomega PTB3113 is a compact single-pole power terminal block designed for safe and reliable high-current conductor connections within industrial switchboards, electrical cabinets and control panels. This model supports aluminium or copper conductors up to 35 mm², providing a dependable connection point for panel wiring where space efficiency and secure conductor termination are essential.

Constructed with a robust PA66 UL94-V0 self-extinguishing insulating body and a tinned aluminium conductive block, the PTB3113 ensures strong electrical conductivity and durable mechanical performance. The block is rated up to 1000 V AC / 1500 V DC with an impulse withstand voltage of 8 kV, making it suitable for demanding industrial panel building and automation installations.

Key Features

• Single-pole power terminal block for industrial electrical panels.
• 1 conductor connection supporting aluminium or copper cables.
• Maximum conductor capacity up to 35 mm².
• PA66 UL94-V0 self-extinguishing insulating body for enhanced safety.
• Tinned aluminium conductive block ensuring reliable electrical contact.
• Galvanised steel screws providing secure cable termination.
• DIN rail mounting for quick installation inside switchboards.
• IP20 protection rating suitable for installation inside electrical enclosures.
• Yellow-green housing commonly used for protective earth identification.

Technical Specifications

• Manufacturer: Teknomega
• Model: PTB3113
• Reference: PTB-1-35-Y
• Product type: Power terminal block
• Poles: 1
• Connections: 1 terminal
• Conductor material: Tinned aluminium
• Insulating body: PA66 UL94-V0
• Maximum conductor size: up to 35 mm² (Cu/Al)
• Rated insulation voltage (Ui): 1000 V AC / 1500 V DC
• Impulse withstand voltage (Uimp): 8 kV
• Protection degree: IP20
• Maximum operating temperature: +85 °C
• Dimensions: approx. 47.4 × 16.3 × 40.3 mm
• Weight: approx. 0.025 kg
• Standards: EN 60947-7-1, EN 61238-1-1

Typical Applications

• Power connections within industrial switchboards.
• Electrical control panels and automation cabinets.
• Machine building and OEM electrical assemblies.
• Protective earth or power conductor termination.
• Compact high-current cable connection points in panel wiring.

Trusted by Panel Builders

Teknomega PTB power terminal blocks are widely used by panel builders and electrical engineers to create safe, organised and reliable power distribution systems within industrial electrical installations.
