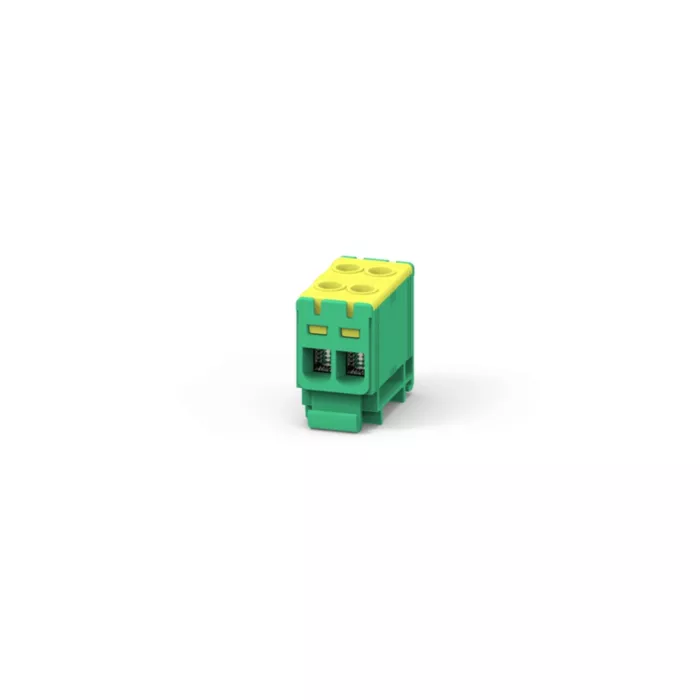

PTB3023 Teknomega 1 Pole 4 Way connector Power Terminals

Why Choose the Teknomega PTB3023 Power Terminal Block?

The Teknomega PTB3023 is a compact single-pole power terminal block designed for safe and organised conductor distribution inside industrial switchboards and control panels. It supports aluminium or copper conductors from 1.5 mm² to 16 mm², providing reliable high-quality connections for smaller power distribution circuits.

Built with a durable PA66 UL94-V0 self-extinguishing insulating body and a tinned aluminium conductor block, the PTB3023 ensures excellent electrical conductivity and secure cable clamping. With a rated insulation voltage of 1000 V AC / 1500 V DC and impulse withstand voltage of 8 kV, it is designed for reliable performance in modern industrial electrical installations.

Key Features

• Single-pole power terminal block for panel power distribution.
• 4-way connection configuration enabling organised cable routing.
• Supports aluminium or copper conductors from 1.5 mm² to 16 mm².
• PA66 UL94-V0 self-extinguishing insulation for electrical safety.
• Tinned aluminium conductive block for reliable electrical performance.
• Galvanised steel screws for secure cable termination.
• DIN rail mounting for fast installation inside switchboards.
• IP20 protection suitable for installation inside electrical enclosures.
• Yellow-green housing typically used for protective earth identification.

Technical Specifications

• Manufacturer: Teknomega
• Model: PTB3023
• Reference: PTB-2-16-Y
• Product type: Power terminal block
• Poles: 1
• Connections: 4 ways
• Conductor material: Tinned aluminium
• Insulating body: PA66 UL94-V0
• Conductor size (Cu/Al): 1.5 – 16 mm²
• Rated current (Ith): 85 A
• Short-time withstand current (Icw): 1.93 kA (1 s)
• Peak short-circuit current (Ipk): 2.7 kA
• Rated insulation voltage (Ui): 1000 V AC / 1500 V DC
• Impulse withstand voltage (Uimp): 8 kV
• Protection degree: IP20
• Maximum operating temperature: +85 °C
• Dimensions: approx. 43.5 × 23.7 × 40.3 mm
• Weight: approx. 0.038 kg
• Standards: EN 60947-7-1, EN 61238-1-1

Typical Applications

• Power distribution inside industrial switchboards.
• Electrical control panels and automation cabinets.
• Machine building and OEM electrical assemblies.
• Protective earth or neutral conductor distribution.
• Compact multi-conductor connections within electrical installations.

Trusted by Panel Builders

Teknomega PTB power terminal blocks are widely used by panel builders and electrical engineers to create safe and organised power distribution systems inside industrial electrical installations.
