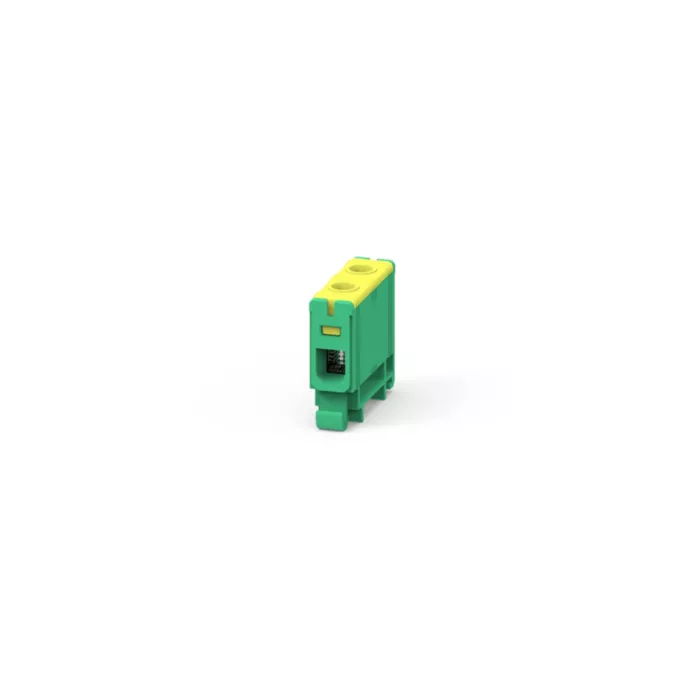

PTB3013 Teknomega 1 Pole 2 Way connector Power Terminals

Why Choose the Teknomega PTB3013 Power Terminal Block?

The Teknomega PTB3013 is a compact single-pole power terminal block designed for safe and organised conductor termination in industrial switchboards, electrical cabinets and automation panels. It supports aluminium or copper conductors up to 16 mm², providing a dependable connection point for protective earth or power circuits where secure termination and compact panel layouts are essential.

Manufactured with a robust PA66 UL94-V0 self-extinguishing insulating body and a tinned aluminium conductor block, the PTB3013 delivers reliable electrical conductivity and long-term durability. The block is rated at 1000 V AC / 1500 V DC with an impulse withstand voltage of 8 kV, ensuring safe operation in demanding industrial electrical installations.

Key Features

• Single-pole power terminal block for compact electrical distribution.
• 1 conductor connection for aluminium or copper cables.
• Supports conductor sizes up to 16 mm².
• PA66 UL94-V0 self-extinguishing insulating body for enhanced electrical safety.
• Tinned aluminium conductor block ensuring strong electrical contact.
• Galvanised steel screws for secure cable clamping.
• DIN rail mounting for quick installation in electrical panels.
• IP20 protection rating suitable for installation inside enclosures.
• Yellow-green housing typically used for protective earth identification.

Technical Specifications

• Manufacturer: Teknomega
• Model: PTB3013
• Reference: PTB-1-16-Y
• Product type: Power terminal block
• Poles: 1
• Connections: 1 terminal
• Conductor material: Tinned aluminium
• Insulating body: PA66 UL94-V0
• Maximum conductor size (Cu/Al): up to 16 mm²
• Rated current: approx. 85 A
• Rated insulation voltage (Ui): 1000 V AC / 1500 V DC
• Impulse withstand voltage (Uimp): 8 kV
• Protection degree: IP20
• Maximum operating temperature: +85 °C
• Dimensions: approx. 43.5 × 13.9 × 40.3 mm
• Weight: approx. 0.021 kg
• Standards: EN 60947-7-1, EN 61238-1-1

Typical Applications

• Power and protective earth termination inside switchboards.
• Industrial control panels and automation cabinets.
• Machine building and OEM electrical assemblies.
• Compact conductor connection points within distribution panels.
• Electrical installations requiring reliable cable termination.

Trusted by Panel Builders

Teknomega PTB terminal blocks are widely used by panel builders and electrical engineers to create safe, organised and reliable power connections in industrial electrical installations.
