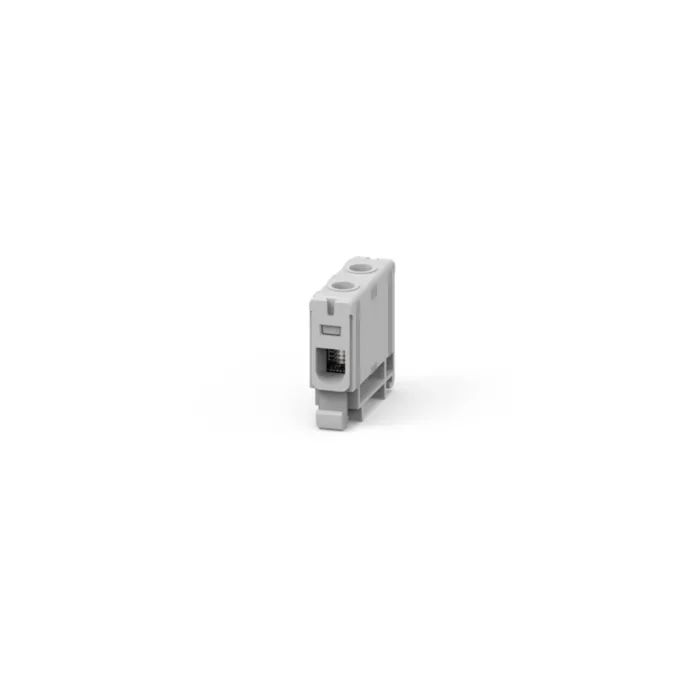

PTB3011 Teknomega 1 Pole 2 Way connector Power Terminals

Why Choose the Teknomega PTB3011 Power Terminal Block?

The Teknomega PTB3011 is a compact single-pole power terminal block designed for reliable conductor termination inside industrial switchboards, control panels and electrical distribution systems. It supports aluminium or copper conductors up to 16 mm², providing a secure and space-efficient solution for structured panel wiring and compact power connections.

Constructed with a durable PA66 UL94-V0 self-extinguishing insulating body and a tinned aluminium conductor block, the PTB3011 ensures strong electrical conductivity and dependable mechanical clamping. With a rated insulation voltage of 1000 V AC / 1500 V DC and impulse withstand voltage of 8 kV, it is designed for safe operation in demanding industrial electrical installations.

Key Features

• Single-pole power terminal block for industrial electrical panels.
• 1 input / 1 output connection for aluminium or copper conductors.
• Maximum conductor capacity up to 16 mm².
• PA66 UL94-V0 self-extinguishing insulating body for electrical safety.
• Tinned aluminium conductive block ensuring reliable electrical contact.
• Galvanised steel screws providing secure cable termination.
• DIN rail mounting for quick installation in electrical switchboards.
• IP20 protection rating suitable for installation inside enclosures.
• Grey housing typically used for phase or general circuit identification.

Technical Specifications

• Manufacturer: Teknomega
• Model: PTB3011
• Reference: PTB-1-16-G
• Product type: Power terminal block
• Poles: 1
• Connections: 1 input / 1 output
• Conductor material: Tinned aluminium
• Insulating body: PA66 UL94-V0
• Conductor size (Cu/Al): up to 16 mm²
• Rated insulation voltage (Ui): 1000 V AC / 1500 V DC
• Impulse withstand voltage (Uimp): 8 kV
• Protection degree: IP20
• Maximum operating temperature: +85 °C
• Dimensions: approx. 43.5 × 13.9 × 40.3 mm
• Weight: approx. 0.021 kg
• Standards: EN 60947-7-1, EN 61238-1-1

Typical Applications

• Power conductor termination inside industrial switchboards.
• Electrical control panels and automation cabinets.
• Machine building and OEM electrical assemblies.
• Compact power distribution points within electrical installations.
• Industrial panel wiring requiring secure cable connections.

Trusted by Panel Builders

Teknomega PTB terminal blocks are widely used by panel builders and electrical engineers to create safe, organised and reliable conductor connections inside industrial electrical installations.
